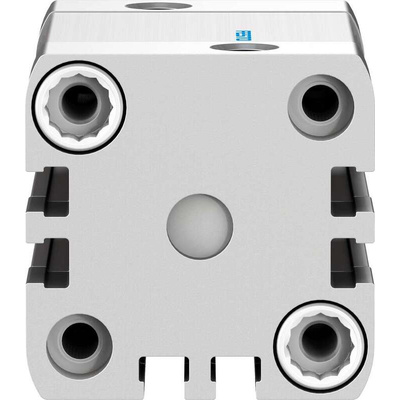

ADN-32-25-A-P-A, Festo Pneumatic Cylinder - 536272, 32mm Bore, 25mm Stroke, ADN Series, Double Acting, Цилиндр

ADN ISO 21287 Pneumatic Cylinders- Flexible Cushioning

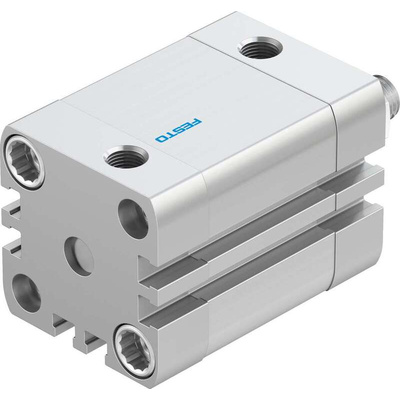

FESTO ADN series of compact pneumatic cylinder are up to 50% smaller than standard pneumatic cylinders for maximum productivity in confined spaces. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod. The extensive range of stroke length and bore size variants in the ADN series can be configured to suit a broad range of applications.

Pneumatic Cylinder Operation
The ADN series is a double acting actuator with air applied to extend and to retract the piston in a linear motion to the desired stroke length. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Cylinders are fitted with flexible polymer end cushioning helping to reduce noise and vibration, prolong service life and increase production and productivity.

Features and Benefits

Complies with ISO 21287 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Cushioning requires no adjustment saving maintenance time and cost

How do I mount the pneumatic cylinder?

The ADN series pneumatic actuators can be mount horizontally or vertically to suit the required application. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

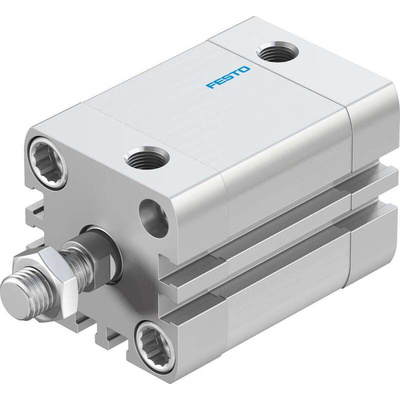

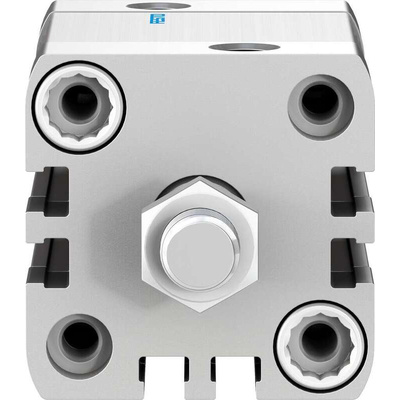

Festo Pneumatic Cylinder, Double Acting, Male M10x1.25 Piston Rod Thread - ADN-32-25-A-P-A

Get your industrial parts moving with this pneumatic cylinder from Festo. Pressurised air pushes its piston through a stroke length of 25mm, so it's ideal for medium-duty applications. As the unit's double-acting, air drives linear movement in both directions, meaning both extension and retraction are accurately controlled. An operating pressure range between 0.6 and 10 bar means this is a versatile piece of kit. Tipping the scales at just 265g, it's a lightweight product and doesn't put any unnecessary load on your setup.

Features & Benefits

• Can be mounted in any position for convenience
• Holds up in harsh environments thanks to a broad operating temperature range between -20°C and +80°C
• Anodised wrought aluminium alloy cover resists corrosion to ensure top-quality performance in wet work areas
• Flexible cushioning rings at each end minimise wear and tear caused by repeated impact

Applications

• Automotive industry
• Main engine control systems
• Manufacturing sector

What thread size is this unit's pneumatic connection?

The pneumatic port on this product has a standardised G1/8 thread, so you can be sure it's widely compatible with commonly used kit.
