ADN-32-40-A-P-A, Festo Pneumatic Cylinder - 536274, 32mm Bore, 40mm Stroke, ADN Series, Double Acting, Цилиндр

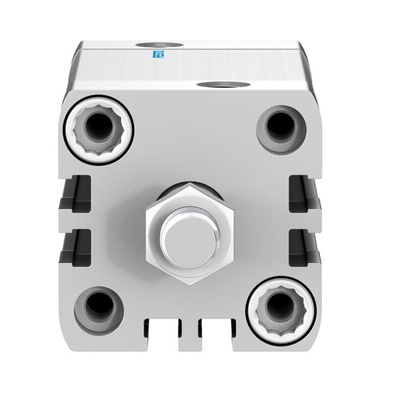

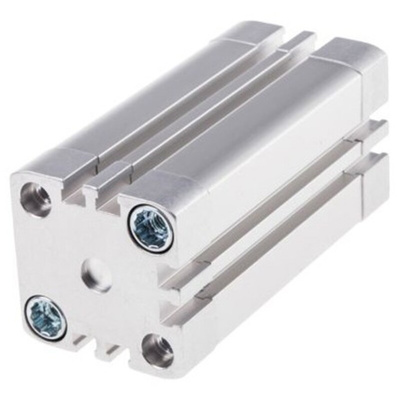

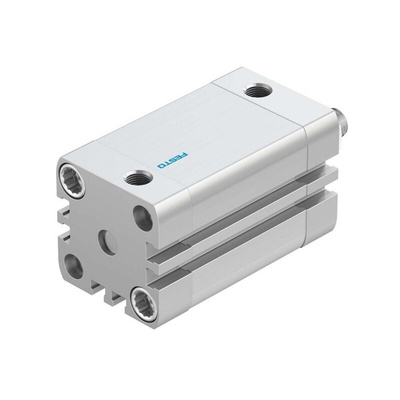

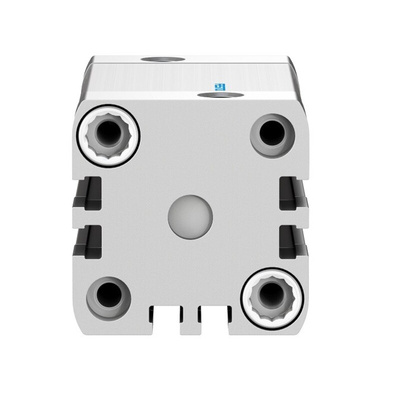

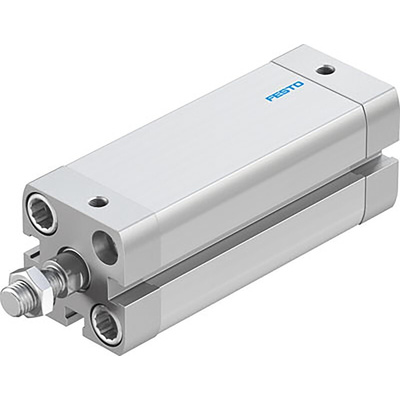

Festo Double-Acting Pneumatic Cylinder, 32mm Bore, 40mm Stroke - ADN-32-40-A-P-A

Use this robust pneumatic cylinder from Festo to provide linear motion in your industrial system. As a double-acting cylinder, it has two ports that use air pressure to move the piston in both directions. Its anodised aluminium housing material is durable and resistant to impact and corrosion, so you can use it in harsh and humid environments. Thanks to its high advance stroke force of 483N, this cylinder is a practical choice for heavy-duty applications. You'll commonly find it used in clamping and positioning applications.

• Compatible with proximity sensors for automated operation
• Polyurethane seal prevents air leakage for optimal performance
• Wide operating temperature range of -20°C to +80°C for use in demanding conditions
• Can be assembled in any position for flexible installation
• Flexible cushioning rings at both ends to prevent noise and friction for a prolonged life span

Applications

• Material handling equipment
• Beverage production plants

What's the operating pressure range of this cylinder?

This cylinder has a wide operating pressure range of 0.6 to 10 bar, making it suitable for both low-pressure and high-pressure applications.

FESTO ADN Series

Datasheet

Festo Pneumatic Cylinders Operating Manual

ADN-32-40-A-P-A Specification Sheet
