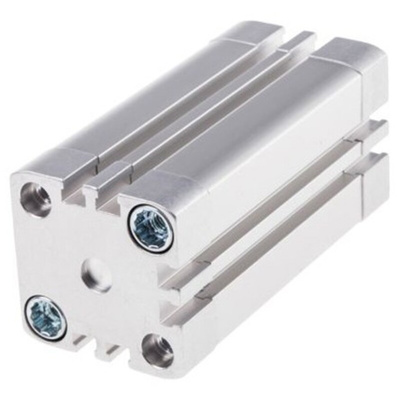

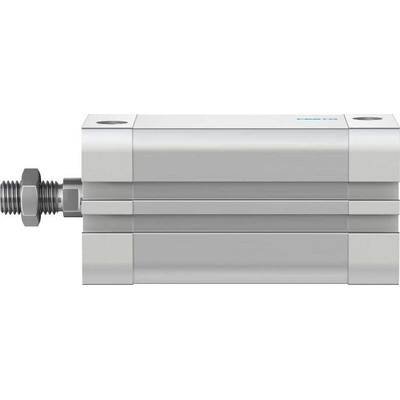

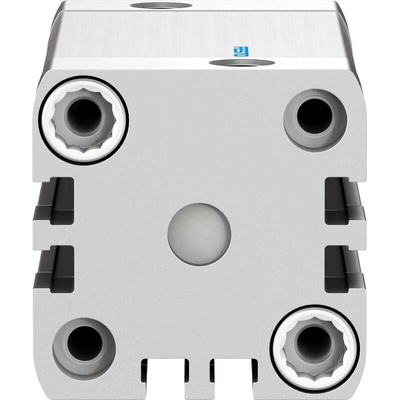

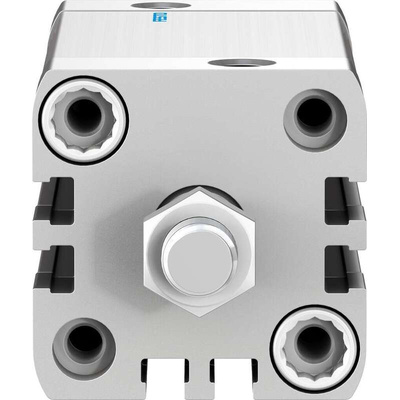

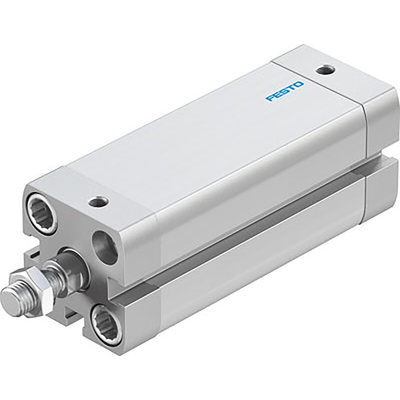

ADN-32-50-A-P-A, Festo Pneumatic Cylinder - 536275, 32mm Bore, 50mm Stroke, ADN Series, Double Acting, Цилиндр

1366795
Номер производителя: ADN-32-50-A-P-AПроизводитель: Festo
Цена за шт.
30096.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ADN ISO 21287 Pneumatic Cylinders- Flexible Cushioning

FESTO ADN series of compact pneumatic cylinder are up to 50% smaller than standard pneumatic cylinders for maximum productivity in confined spaces. These double acting pneumatic actuators have dual connection ports for compressed air to be applied for advancing and retracting the piston rod. The extensive range of stroke length and bore size variants in the ADN series can be configured to suit a broad range of applications.

Pneumatic Cylinder Operation
The ADN series is a double acting actuator with air applied to extend and to retract the piston in a linear motion to the desired stroke length. Magnetic piston rods allow contactless position detection via a proximity sensor mounted in slots along the cylinder body.

Cylinders are fitted with flexible polymer end cushioning helping to reduce noise and vibration, prolong service life and increase production and productivity.

Features and Benefits

Complies with ISO 21287 standard
Slots for flush mounting proximity sensors
Low friction design allowing for continuous operation
Cushioning requires no adjustment saving maintenance time and cost

How do I mount the pneumatic cylinder?

The ADN series pneumatic actuators can be mount horizontally or vertically to suit the required application. Optional mounting accessories provide further flexibility allowing the cylinder to be attached with a swivel bracket for free movement, foot mounted for support under high loads or combined with other actuators to give a wider range of movement.

Festo Pneumatic Cylinder, 32mm Piston Diameter, Male M10x1.25 Piston Rod Thread - ADN-32-50-A-P-A

Want to take the pressure out of manoeuvring workpieces or industrial parts? Give the job to this pneumatic cylinder from Festo. Supplying it with compressed air in a range between 0.6 and 10 bar causes the piston to move. As the unit is double-acting, air drives the rod backwards and forwards to give you reliable two-way motion. An accurate stroke length of up to 50mm delivers precision positioning for your automated application. Harsh conditions are no match for this product, which can handle temperatures ranging from -20°C to +80°C.

Features & Benefits

• Flexible mounting options let you install it according to the needs of your equipment
• Lightweight at just 265g, so it doesn't put strain on your setup
• Standardised G1/8 thread on the pneumatic port for easy compatibility with connecting parts
• Anodised wrought aluminium alloy cover offers protection from corrosion in wet work areas

Applications

• Engine control systems
• Industrial manufacturing industry
• Automotive sector

Does this cylinder come with cushioning?

Yes, it does. Both ends are fitted with elastic cushioning plates to reduce damage from wear and tear, ensuring a long service life.

FESTO ADN Series

Техническая спецификация
pdfDatasheet
pdfFesto Pneumatic Cylinders Operating Manual
pdfADN-32-50-A-P-A Specification Sheet
pdfBrochure - Simply Part of The Solution
Вес:
415гр
Вес интервала хода:
30 g (at 10 mm)
Высота:
47мм
Давление - максимальное рабочее:
10 бар
Действие:
Double
Длина:
100мм
Испытательный вес:
265 g (at 0 mm)
Модель р:
536275
Отверстие:
32мм
Пневматическое соединение:
G 1/8
Производитель - серия:
ADN
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-20°C
Размеры:
47 x 47 x 100мм
Род резьбы поршневого стержня:
Male
Стандарт ISO:
ISO 21287
Стандарт VDMA:
VDMA24364
Тип демпфирования:
Cushioning Rings
Ход:
50мм
Ширина:
47мм
