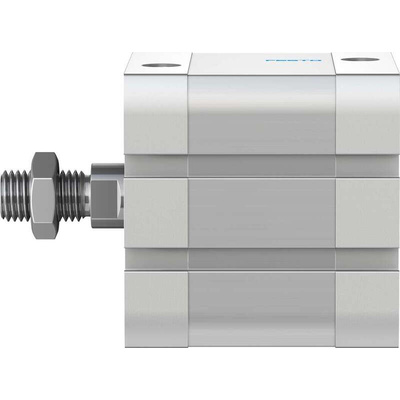

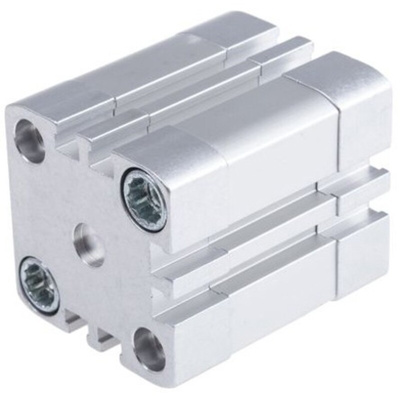

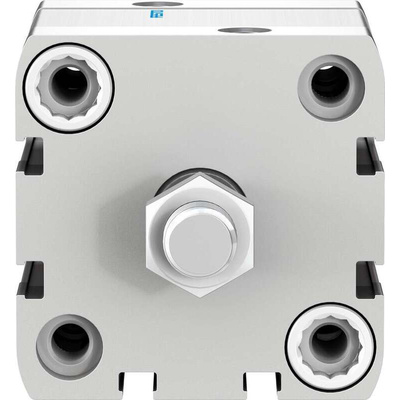

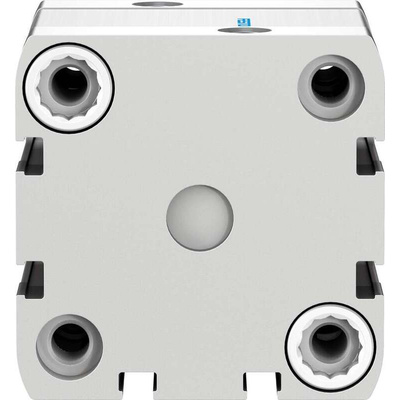

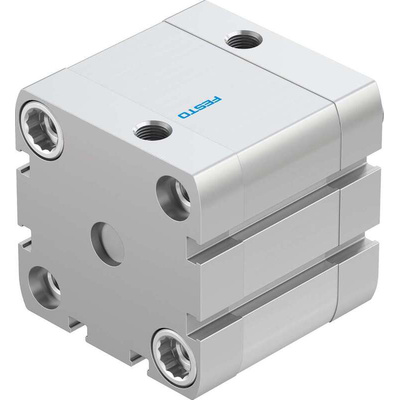

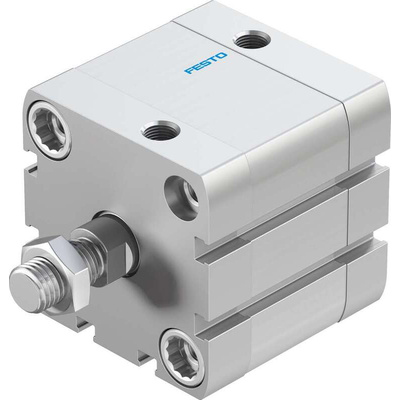

ADN-50-20-A-P-A, Festo Pneumatic Cylinder - 536313, 50mm Bore, 20mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, G1/8 Port Connection, 10 Bar Maximum Operating Pressure - ADN-50-20-A-P-A

This pneumatic cylinder from Festo keeps going strong through the push and pull of your daily operations. It's double-acting, which means compressed air drives its piston back and forth, delivering precise movements. As it has slots on three sides and a magnet for contactless position sensing, you can flush-mount proximity sensors as needed to ensure accurate and efficient piston action. With a bore of 50mm and stroke of 20mm, this unit has enough power to handle heavy-duty applications with ease.

• Compact dimensions of 65.5 (W) x 72.7 (L) x 65.5mm (H), suitable for space-saving installations
• Broad operating temperature range between -20°C and +80°C, so it can handle harsh conditions
• Can be mounted vertically or horizontally to suit your needs
• Standard G1/8 port and pneumatic connections for wide compatibility
• Maximum operating pressure of 10 bar makes it suitable for high loads

Applications

• Automated production lines
• Distribution centres
• Packaging plants

Does this pneumatic cylinder have any noise-dampening features?

Yes. It's fitted with flexible polymer end cushioning that helps to reduce noise and vibration, for a quieter working environment.
