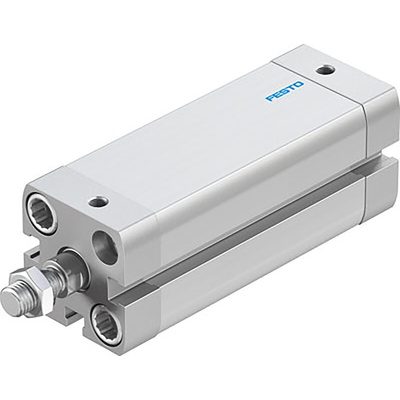

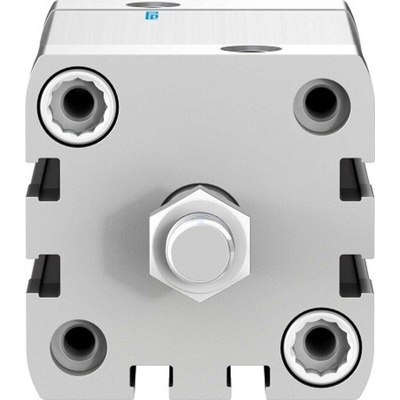

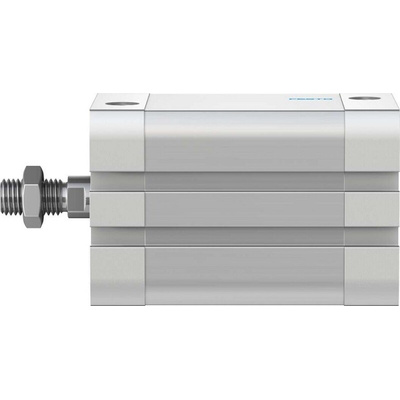

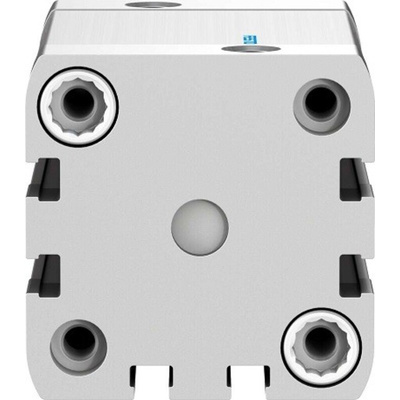

ADN-50-80-A-P-A, Festo Pneumatic Cylinder - 536319, 50mm Bore, 80mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, Double-Acting, G1/8 Pneumatic Connection - ADN-50-80-A-P-A

Give your machinery a push in the right direction with this pneumatic cylinder from Festo. As it's double-acting, it takes in compressed air through an open port at each end. This causes the piston rod to extend and retract, creating the straight-line motion needed to position workpieces. Flexible cushioning rings soften the blows from the rod and help to shield it from stress cracking. They also cut down noise, to make your workplace more comfortable. Thanks to its high alloy steel body, the piston stands up to corrosion and shrugs off repeated impacts.

Features & Benefits

• Mountable in any position for flexible installation
• Lubricated operation possible for reduced risk of friction
• Tough TPE-U seals are thermal-resistant for durability
• Cushioning needs no adjustment, reducing the need for maintenance

Applications

• Water treatment facilities
• Construction equipment
• Automotive engineering
• Transmission systems

What operating pressure can this cylinder handle?

Thanks to an operating range between 0.6 and 10 bar, this is a versatile option that handles high and low pressures.

How do I monitor the position of the piston rod?

This cylinder has pre-cut slots on three of its sides so you can couple it with a proximity sensor to track the position of the piston.
