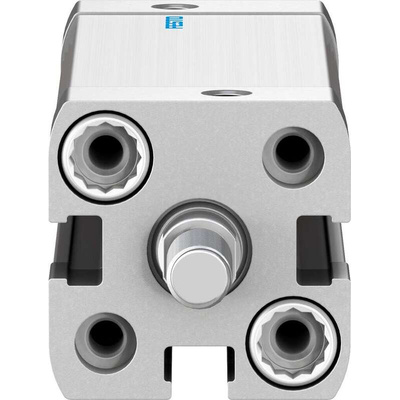

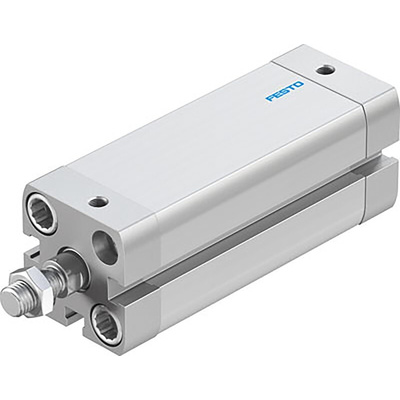

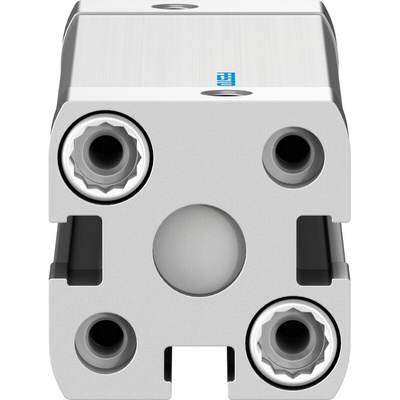

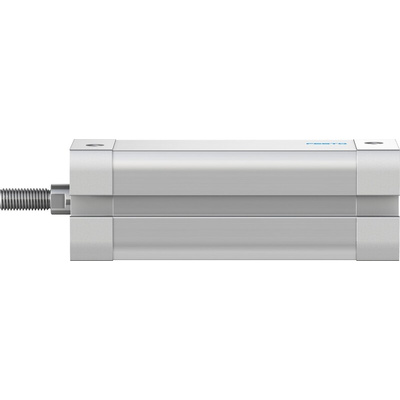

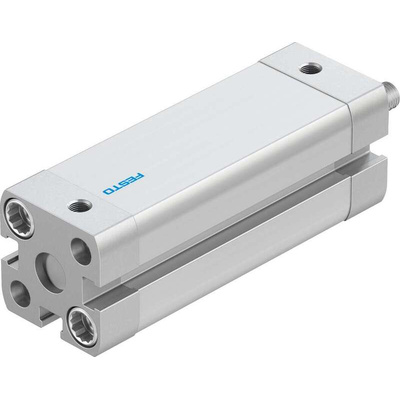

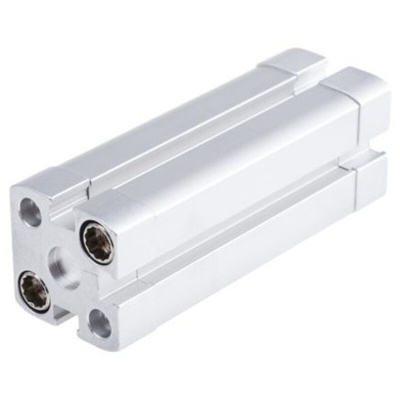

ADN-16-50-A-P-A, Festo Pneumatic Cylinder - 536331, 16mm Bore, 50mm Stroke, ADN Series, Double Acting, Цилиндр

Festo Pneumatic Cylinder, TPE-U Seal Material, 0.6 to 10 Bar Operating Pressure Range - ADN-16-50-A-P-A

Need a hand moving loads in your industrial equipment? Choose this pneumatic cylinder from Festo. As it's double-acting, its piston rod extends and retracts for precise control over movement in your system. It has an M6-sized thread, making it a cinch to connect to standard fittings. A durable wrought aluminium alloy barrel stands up to corrosion and impact, so you can rely on it in harsh conditions. You can assemble this component in any position, giving you flexible installation options.

Features & Benefits

• Cushioning rings at each end absorb impact and minimise wear for long-lasting use
• TPE-U seals prevent leakage and block out contaminants to ensure optimal performance
• Wide operating pressure range between 0.6 and 10 bar means it's compatible with low and high-pressure equipment
• Advance stroke force of 121N and return stroke force of 90N for powerful movement

Applications

• Process and packaging industry
• Marine engineering
• Oil and gas plants

Can I use this unit without lubrication?

Yes, you can use this unit with or without lubrication for versatility.

FESTO ADN Series

Datasheet

Festo Pneumatic Cylinders Operating Manual

ADN-16-50-A-P-A Specification Sheet

Brochure - Core Product Range
