MS6-EE-1/2-10V24, Festo 3/2 Pneumatic Solenoid Valve - Electrical G 1/2 MS6 Series 24V dc, 542582, Клапан

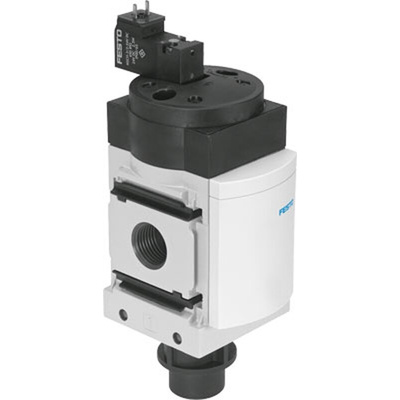

Festo Pneumatic Solenoid Valve, Electrical, 3/2 Port Configuration - MS6-EE-1/2-10V24

This pneumatic solenoid valve from Festo controls components in automated processes by directing the movement of compressed air. Thanks to its 3/2 design, it can discharge air through three ports by moving in two directions. A wide operating temperature range between -10°C and +60°C means you can use this device in challenging settings. For safety, you can manually override the valve in the event of an emergency simply by pushing it. The unit can withstand high-flow systems due to its maximum flow rate of 7,000l/min.

• Broad operating pressure range between 4 and 10 bar for use in low-pressure systems
• Can be lubricated for effective operation
• IP65 rating indicates it's protected against dust and light jets of water
• Solvent-resistant NBR seals prevent air leakage
• Durable die-cast aluminium housing is resistant to wear and corrosion

Applications

• Aviation industry
• Industrial cylinders
• Conveyor systems
• Manufacturing industry

How do I mount this solenoid valve?

This valve features three G1/2 threaded connections for quick mounting into pneumatic ports. Thanks to its line installation design, the unit can easily accommodate additional accessories if you're putting together an expanded system. As you can mount it in any position, it's a versatile choice.

Solenoid Operated On/Off Valves

Datasheet

MS6-EE-1/2-10V24 Specification Sheet
