MS4-EE-1/4-10V24-S, Festo 3/2 Pneumatic Solenoid Valve - Electrical G 1/4 MS4 Series 24V dc, 542598, Клапан

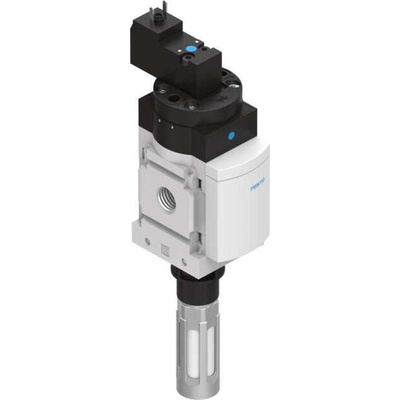

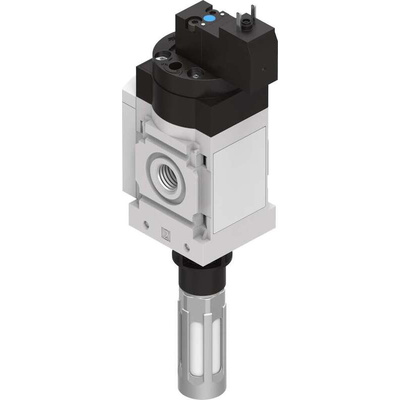

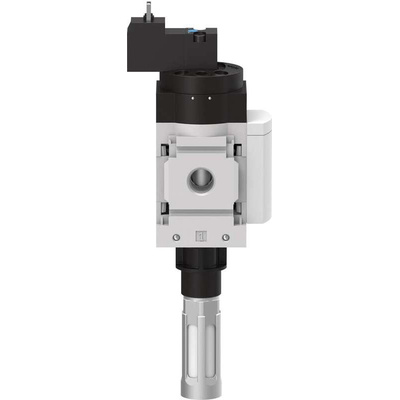

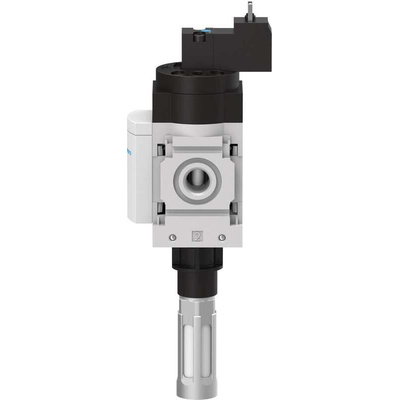

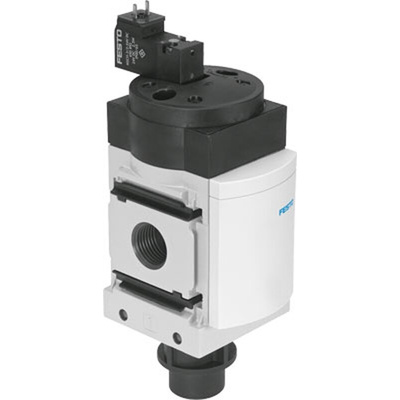

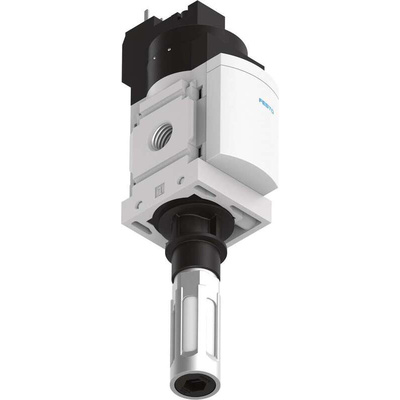

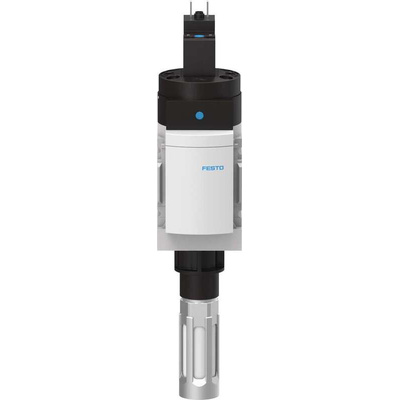

Festo Pneumatic Solenoid Valve, Pilot-Actuated Type, 1.8W Power Rating - MS4-EE-1/4-10V24-S

Take the pressure out of fluid control with this 3/2-way pneumatic solenoid valve from Festo. Its built-in poppet changes positions in response to a 24V DC input signal, letting you easily switch the flow direction in your compressed-air system. Thanks to its IP65 rating, this hardy device is dust-tight and withstands low-pressure water jets from any angle. To prevent leakage in tough conditions, its seals are made from abrasion-resistant NBR.

Features & Benefits

• High flow rate of 2000L/min indicates it's suitable for use with demanding networks
• G1/4 thread size on connections ensures wide compatibility with pneumatic components
• Broad operating pressure range between 4 and 10 bar makes it a flexible flow-control option

Applications

• Auxiliary air circuits
• Pneumatic motors
• Automation and control systems

What temperature range can this product operate in?

This pneumatic solenoid valve can withstand temperatures in a wide range between -10°C and +50°C, so it's a tough piece of kit.

Can I use this product in moist conditions?

Yes, you can. This valve is steam-safe thanks to its corrosion-resistant die-cast aluminium housing.

Solenoid Operated On/Off Valves

Datasheet

MS4-EE-1/4-10V24-S Specification Sheet
