CTEU-EC, Festo CTEU series Serial Interface, Модуль

CTEU Series Fieldbus Modules

Festo CTEU series fieldbus modules offer a simple, modular and cost-effective solution. With I-Port, Festo's new universal communication interface. With the I-Port numerous products can be connected to fieldbuses or directly to IO-Link.

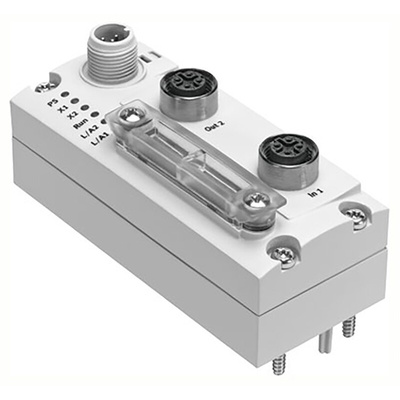

Festo Serial Interface, EtherCAT Fieldbus, M12 Connectors - CTEU-EC

Support communication between your PLC and pneumatic drives with this serial interface from Festo. The modular design helps you to customise your setup, as it plugs into a valve, electrical terminal block or IO-Link module for flexibility. Universal D-coded M12 sockets make it easy to network with your existing equipment. To maximise its compatibility with industrial systems, the interface supports commonly-used protocols including CANopen, PROFIBUS and EtherCAT. There are LEDs on the front of the device to provide diagnostics to help you spot and solve basic electrical, connection and communication problems, making it simple to use.

Features & Benefits

• IP65 rating means it's dust-tight and resistant to jets of water from any direction
• Wide operating temperature range between -5°C and +50°C for use in demanding environments
• PA housing for strength and resistance to wear
• Compact dimensions of 91 (L) x 40 (W) and 50mm (H)

Applications

• Industrial automation
• Process control
• Packaging equipment
• Electronics assembly lines

What's the operating voltage of this serial interface?

This serial interface has a safe operating voltage between 18 and 30V DC to work with power supplies in industrial circuits.

Fieldbus Modules

Datasheet

CTEU-EC Specification Sheet

Instruction Sheet - CTEU-EC

Manual - CTEU-EC
