VUVG-B10-M52-RZT-F-1T1L, Festo 5/2 Solenoid Valve - Electrical VUVG Series 24V dc, 573416, Клапан

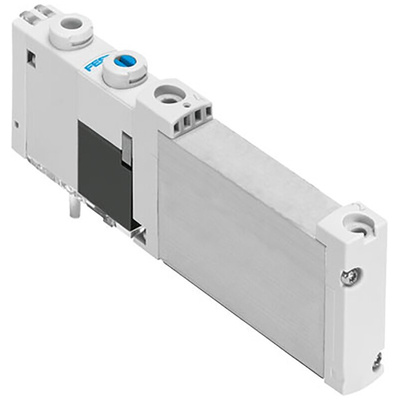

Festo Solenoid Valve, Any Assembly Position, 10mm Valve Size - VUVG-B10-M52-RZT-F-1T1L

Breathe new life into your pneumatic equipment with this solenoid valve from Festo. The solenoid is activated when it receives electricity, so it opens and closes on demand to provide precision control. A 5/2 configuration means it offers the two outputs and two venting ports needed to drive a double-acting cylinder. As the unit operates under pressures between -0.9 and 10 bar, it's suitable for low-pressure systems. An IP67 rating means you can trust it's dust-tight and withstands temporary immersion in water up to one metre deep.

Features & Benefits

• 200L/min standard nominal flow rate means you get high performance from a compact 10mm valve
• Inbuilt LED signalling for easy monitoring
• Reliable performance in temperatures ranging between -5°C and +60°C
• Robust aluminium alloy body withstands impact, abrasion and mechanical stress for a long service life
• Reversible flow direction provides flexibility

Applications

• Pharmaceutical production
• Aerospace engineering
• Automotive manufacturing

How heavy is this solenoid valve?

It weighs only 53g, so it doesn't add excess load to your setup and mounts on thin-gauge material without any problem.

Datasheet

VUVG-B10-M52-RZT-F-1T1L Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - Solenoid Valve
