VUVG-B10-M52-MZT-F-1T1L, Festo 5/2 Solenoid Valve - Electrical VUVG Series 24V dc, 573417, Клапан

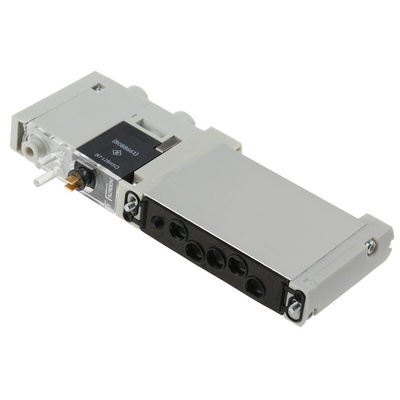

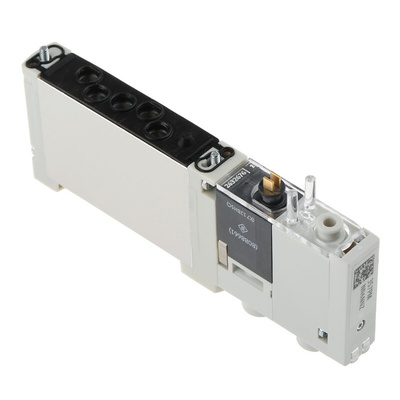

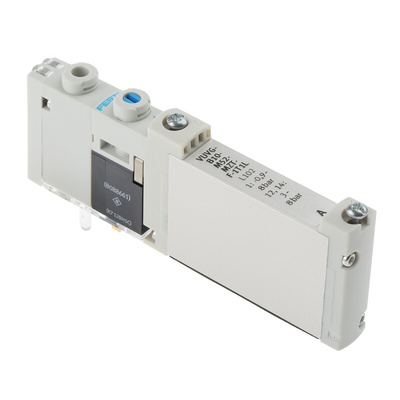

Festo Lightweight LED Pneumatic Solenoid Valve, 5/2, 24V DC - VUVG Series - VUVG-B10-M52-MZT-F-1T1L

This 5/2 electrically-actuated solenoid valve from Festo is used for regulating pneumatic machinery. Its compact length of 10mm is ideal for mounting in small set-ups that need a medium to low flow rate. The valve features an advanced LED (light-emitting diode) display that lets you easily monitor its status. A maximum flow rate of 260l/min means it's suitable for situations where you need a rapid release of liquid or gas media at high volume. You'll find solenoid valves like this in domestic cylinders and vacuum-pressured appliances.

• Wide operating pressure range of -0.9 to 8 bar
• Maximum operating temperature of +60°C for use in tough environments
• Five ports for a versatile range of possible configurations
• Low power consumption of 0.4W makes for an energy-efficient component
• Swift reset via internal mechanical spring enables multiple uses with minimal backlash

Application Information

• Vacuum systems
• Manufacturing
• Industrial machinery
• Packaging equipment

How durable is this pneumatic solenoid valve?

This valve is made from a corrosive-resistant aluminium alloy. This resists rust and degradation, as well as damage from dust and debris, for a longer service life.

Datasheet

VUVG-B10-M52-MZT-F-1T1L Specification Sheet

Brochure - Order guide for standalone valves

Declaration of Conformity - Solenoid valve

Instruction Sheet - VUVG series
