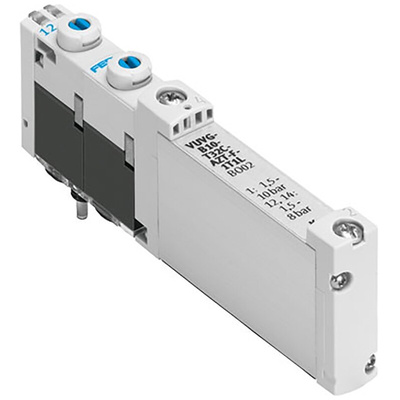

VUVG-B10-B52-ZT-F-1T1L, Festo 5/2 Solenoid Valve - Electrical VUVG Series 24V dc, 573418, Клапан

Festo Solenoid Valve, Manifold Mounting Style, 3Hz Maximum Switching Frequency - VUVG-B10-B52-ZT-F-1T1L

Regulating the movement of media is easy with this solenoid valve from Festo. The inbuilt solenoid coil is energised by 24V DC to open or close the valve with a speedy 9ms switching time. You can use it to drive a double-acting cylinder as its 5/2 configuration makes it a fully pneumatic unit with two operational chambers that direct airflow in and vent exhaust out. Designed to operate in a pressure range of -0.9 to 10 bar, this versatile valve is ideal for use in low-pressure systems.

Features & Benefits

• 10mm valve size offers a compact footprint
• 24V DC solenoid voltage is ideal for low-power applications
• Up to 330L/min flow rate makes it suitable for high-volume setups
• LED display for easy status-checking and troubleshooting
• +/-10% permissible voltage fluctuation for electrical safety

Applications

• Pulp and paper mills
• Agricultural equipment
• Factory automation

What is manifold mounting?

Manifold mounting allows a valve, like this one, to be secured onto a fixed plate in your infrastructure. Manifolds often accommodate multiple valves to make the most of available space and simplify your setup.

Datasheet

VUVG-B10-B52-ZT-F-1T1L Specification Sheet

Brochure - Simply Part of the Solution

Instruction Sheet - Solenoid Valve
