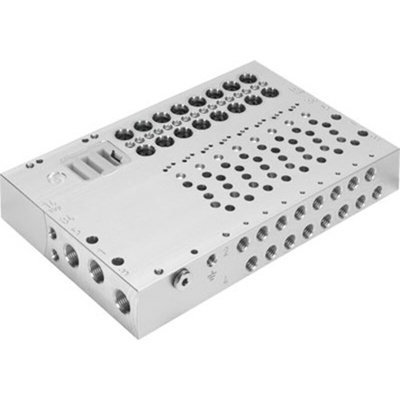

VABM-L1-10HW-G18-10-GR, Festo VABM series 10 station G 1/8 Manifold Base for use with VUVG-B Series Sub-Base Valves

Festo 10-Station Manifold Base For VUVG-B Series Sub-Base Valves, G1/8 - VABM-L1-10HW-G18-10-GR

Use this manifold base from Festo to distribute high-pressure air to pneumatic solenoid valves and other mechanical devices in industrial systems. The unit is specifically designed for valves in the VUVG-B series. It's made of wrought-aluminium alloy, which is durable and corrosion-resistant for reliable long-term performance. The base is also airtight with minimal leakage, so you can use it for a variety of high-pressure applications. A base-mounting system makes for quick and simple installation, without the need for tools.

• Five different pneumatic connection port sizes to accept a wide range of valves and power tools for versatility
• Light weight of 616g for easy handling
• Wide operating temperature range of -20°C to +60°C suitable for use in harsh environments
• Compact 10.5mm grid dimension is space-efficient and suitable for setups in tight spaces

Applications

• Robotics and automation
• Mobile machinery
• Prototyping

How does this pneumatic manifold work?

This component enables the installation of multiple air-driven solenoid valves in a centralised location where a single air supply and exhaust port is shared between them. This eliminates the need for excess tubing, saves space and reduces leakage.

Manifold Sub-bases and End-plates

Datasheet

VABM-L1-10HW-G18-10-GR Specification Sheet

Instruction Sheet - VABM-L1-10HW-G18-10-GR
