RS PRO Hand Crimp Tool for Wire End Sleeves, 0,25 → 16mm² Wire, Обжимные клещи

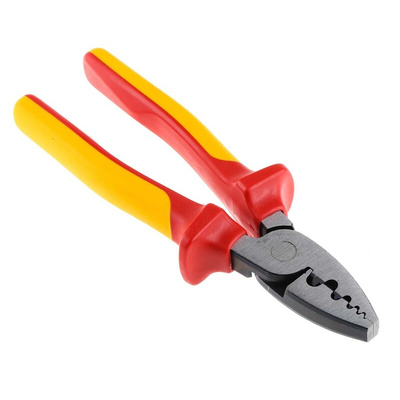

RS PRO VDE Crimping Pliers

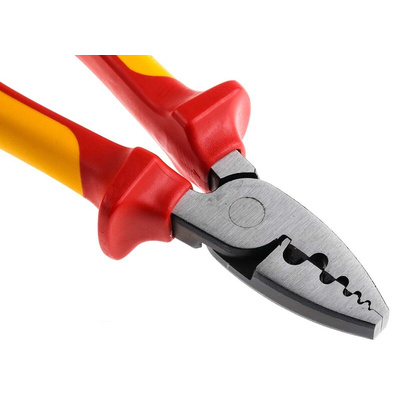

RS PRO VDE crimping pliers for crimping wire end sleeves/ferrules from 0.25 to 16 mm² (DIN 46228 parts 1 + 4). This high-quality hand tool has marked half-round dies for reliable connections between the sleeve and the conductor. This RS Pro crimp tool has been designed for professional use with the highest attention to details. Wire end ferrules can be inserted easily from the side. Ergonomically designed handles guarantee safe, anti-slip and easy operation.

Features and Benefits

Overall height 180 mm
Weight 250 g
For cable terminals according to DIN 46 228 standards
Clamping Capacity 0.25 to 16 mm²
Ergonomic pliers
Strength-enhancing handle design
Compact and lightweight tool for professional use

Typical Applications
Crimping tools can be used for a variety of applications:-
• Maintenance & repair
• Electrical Installations
• Cable assemblies
FAQ’s:
What is the difference between un-insulated and insulated crimp tools?
Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

How to maintain the product?
• To maintain a good function and long life: Axles and other movable parts should be regularly lubricated
• Lubrication* is recommended at least every 10,000 cycles whenever tool is exposed to dirt or other contaminants
• Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly

*Use a light mineral-free oil

The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.
