MFH-3-1/4-S, Festo Pneumatic Solenoid Valve - Electrical G 1/4 MFH Series, 7959, Клапан

FESTO Tiger Classic Solenoid Valves - Pneumatic Control Valve

Introducing our Tiger Classic Valves. These pneumatic valves are suitable for mounting onto a PAL manifold strip and PRS manifold block with hollow bolts. The manifold strip and manifold block feature 2-6 pneumatic valve positions. Vacant positions have the option to be sealed on PAL manifold strips through the use of blanking caps or blanking plates.

Features & Benefits

• These solenoid valves are sturdy and reliable
• All dependant on the choice of connection, normally-open or normally-closed function
• Separate pressure levels can be provided to individual control valves. This is through the use of hollow bolts with threaded connections
• Very durable poppet valve concept for all 3/2 and 5/2-way valves
• RoHS compliant (Restriction of Hazardous Substances)
• F Solenoid coil with electrical actuation
• Variation of high flow rates of up to 7500 l/min
• Pipe (hose) thread available in sizes G1/8 and G1/4
• Proven assembly on PAL or PRS manifold strips with hollow bolts
• Optimised response times with patented U-ring and servo control
• With internal or external pilot air

Applications

• PAL Manifold Strips
• PRS Manifold Blocks

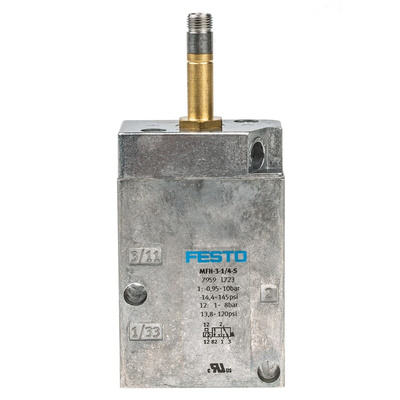

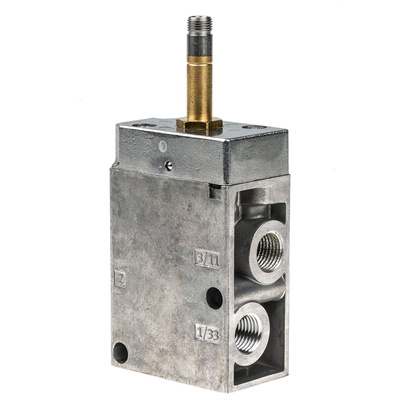

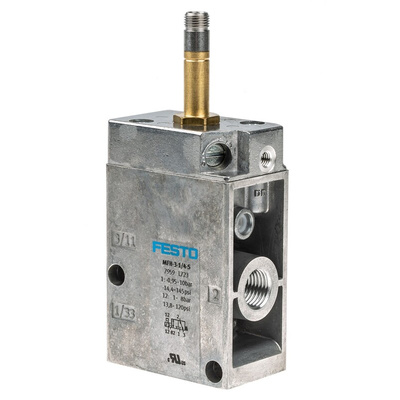

FESTO MFH-3-1/4-S Solenoid Valve

• Storage temperature -20 to 60°C
• Ambient temperature -5 to 40°C
• Low corrosion stress CRC classification
• This solenoid valve has an external pilot air supply
• 3/1 closed, monostable valve function
• Electrical actuation type
• 0.95 to 10 bar operating pressure
• Switching time off is 29 ms and switching time on is 10 ms
• Standard nominal flow rate is 800 l/min

Festo Tiger Classic

MFH-3-1/4-S Specification Sheet
