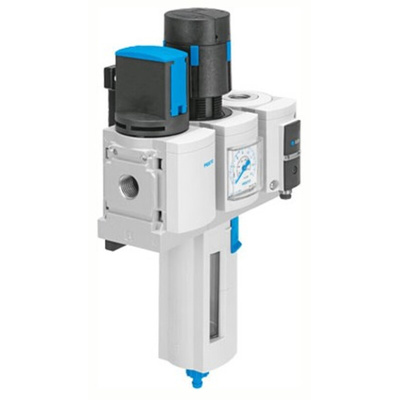

MSB4-1/4, Festo MS Filter Regulator, 40μm, G 1/4, Manual, Сборка

MSB Series Filter Regulators

The MSB series has a filter regulator and a pressure gauge. It has a 40 μm filter, lockable regulator head, plastic bowl / guard and manual condensation drain.

• Direction of flow: from left to right


• Manual rotary condensate drain


• 40 μm filter


• Operating pressure: 0.5 bar to 12 bar


• Flow rate: MSB4 is 1400 L/min to 1700 L/min, MSB6 is 4000 L/min to 5100 L/min


• Pneumatic connection: MSB4 is G1/4, MSB6 is


• Corrosion resistance classification 2 (moderate corrosion stress)


• Aluminium diecast housing with plastic bowl and guard

Standards

Compressed air to ISO 8573-1:2010 [-:4:-] inert gases.

This MSB6-1/2:C3:J1:F12-WP from FESTO offers a complete concept for compressed air treatment.

Features and Benefits

• Size – 4


• Actuator lock – rotary knob with detent can be closed with the accessories


• Controller function with outlet pressure constant


• Controller function with secondary exhausting


• Controller function with primary pressure compensation


• Controller function with return flow


• Standard nominal flow rate – 1600 l/min


• Corrosion resistance class (CRC) – 2 (moderate corrosion stress)


• Housing material – Die – cast aluminium


• Material of bowl – PC (polycarbonate)


• Weight – 1500g

Applications

Filter regulator is used to control the speed and precision of the flow of liquid and air in:

• Air tools


• Impact wrenches


• Blow guns


• Air gauging equipment


• Air cylinders


• Air bearings


• Air motors


• Spraying devices


• Fluid systems


• Air logic valves


• Aerosol lubrication systems

Regulators and Filter Regulators

Datasheet

MSB4-1/4:C3:J1:F12-WP Specification Sheet
