MSB4-1/4, Festo MS Filter Regulator, 40μm, G 1/4, Manual, Сборка

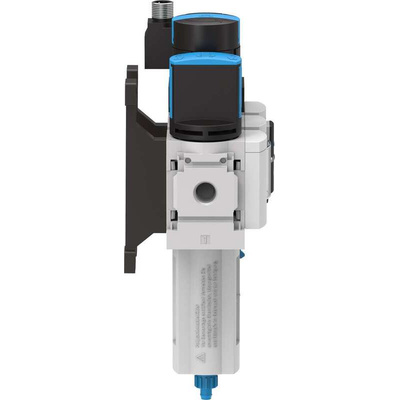

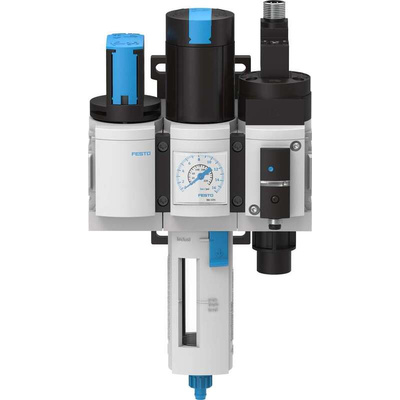

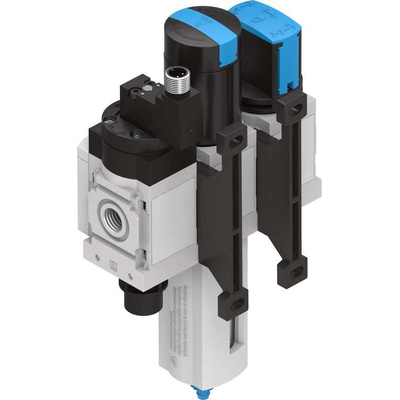

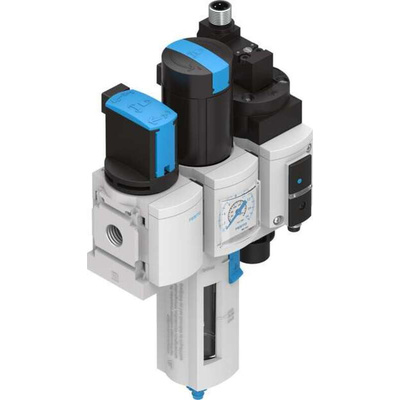

Festo Filter Regulator, 0°C Minimum Operating Temperature, Left-to-Right Airflow Direction - MSB4-1/4:C3:J1:D14-WP

Keep things flowing smoothly with this filter regulator from Festo. It takes care of removing impurities, while also carefully controlling the speed at which air or liquid flows through your system. With a standard G1/4 port connection, the device is widely compatible, so easy to install. A filtration size of 40μm means you can be sure that no nasties get into your automated system or pneumatic tools. You can manually drain the filter regulator as needed, so control is at your fingertips.

Features & Benefits

• Plastic bowl and die-cast aluminium housing for durability
• Wide operating temperature range between 0°C and +50°C suits challenging environments
• Nominal flow rate of 1400L/min for system efficiency
• Controller function includes primary pressure compensation for additional stability

Applications

• Pneumatic tools
• Mining equipment
• Robotics and automation systems

What pressures can this filter regulator operate at?

Although it has an operating pressure range between 0.8 and 14 bar, the proof pressure of the filter regulator is 12 bar. Continuously operating it above this pressure may result in performance changes and damage to equipment.

Regulators and Filter Regulators

Datasheet

MSB4-1/4:C3:J1:D14-WP Specification Sheet

Instruction Sheet - MSB4 Series

Brochure - MS Series
