NEBC-D12G4-ES-5-S-R3G4-ET, Festo Cable, NEBC Series, For Use With Fieldbus Modules CTEU

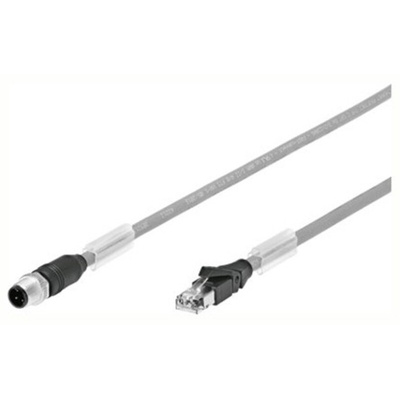

Festo Cable Lead For Use With Fieldbus Modules, 5m Length, M12 4-Pin Connector - NEBC-D12G4-ES-5-S-R3G4-ET

Use this cable from Festo to link your pneumatic device to a control unit or an energy chain. As it's Ethernet-enabled, you can connect it to the internet to optimise its functionality. The connector's brass electrical contact is gold-plated for secure current transmission and resistance to corrosion. Thanks to its surge strength of 0.8kV, the cable can withstand surges and short circuits. For added safety, it features robust PE insulation to help prevent electric shocks. A length of 5 metres means this is a convenient choice for making shorter-range connections.

• Oil-resistant for safe use in factory settings
• IP20 rating indicates protection from objects over 12mm in size
• Broad operating temperature range between -25°C and +80°C to withstand demanding environments
• TPE-U cable sheath is tear-resistant for extended service life

Applications

• Power plants
• Agricultural equipment
• Mining industry
• Plant engineering

How durable is this cable?

When used in an energy chain, this cable has a mechanical service life of 2 million cycles for long-service operations. For added durability, the bending radius of 100mm means it's highly flexible for connection in awkward spaces and around corners.

Datasheet

NEBC-D12G4-ES-5-S-R3G4-ET Specification Sheet

Instruction sheet - NEBC-D12G4-E...-R3G4-ET
