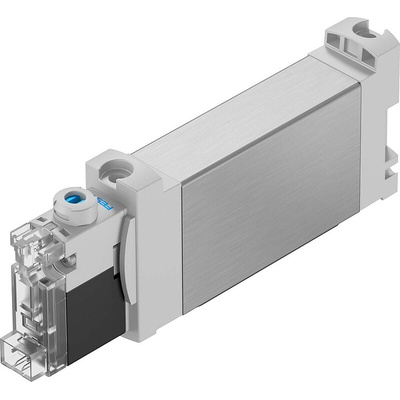

VUVG-BK14-M52-AT-F-1H2L-S, Festo 5/2 Solenoid Valve - Electrical VUVG Series 24V dc, 8042571, Клапан

Festo Solenoid Valve, 380L/min Flow Rate, 65g Weight - VUVG-BK14-M52-AT-F-1H2L-S

Want to keep your pneumatic system running like a well-oiled machine? Get your hands on this solenoid valve from Festo. Since it's an electric actuator, it can make precise adjustments to the flow or pressure, providing you with accurate control over your operations. Thanks to a broad operating temperature range between -5°C and +50°C, the unit reliably stands up to challenging industrial environments. Wrought aluminium alloy housing means it's protected against wear and tear as well as corrosion, making it a solution that lasts.

Features & Benefits

• Operating pressure range between 2.5 and 7 bar to deliver reliable power to your system
• Manifold mounting for simple installation
• LED display ensures quick and easy troubleshooting
• IP40 rating indicates protection from tools and small wires bigger than 1mm

Applications

• Chemical processing machinery
• Water treatment systems
• Agricultural equipment

How many ports and positions does this solenoid valve have?

It has a 5/2 function, which means you get five ports and two positions. The five ports allow you to control two separate air circuits, while the two positions determine which circuit is active. This is useful for controlling double-acting pneumatic cylinders.

Datasheet

VUVG-BK14-M52-AT-F-1H2L-S Specification Sheet
