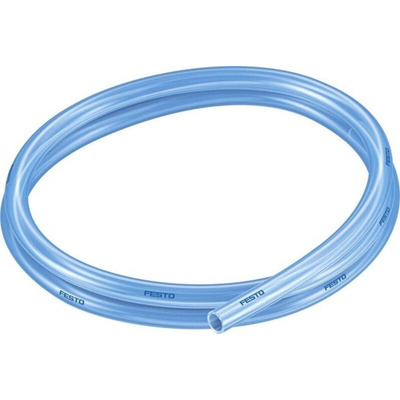

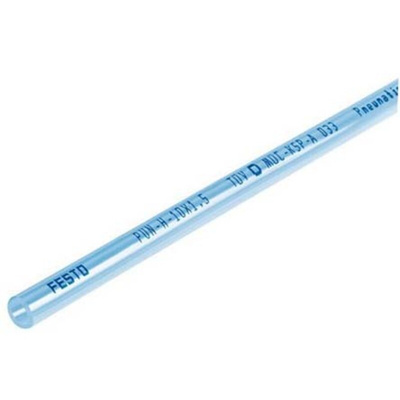

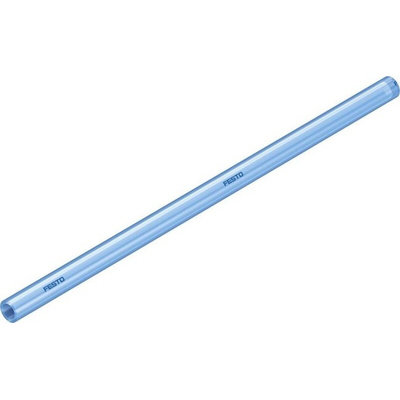

PUN-H-10X1,5-TBL, Festo Compressed Air Pipe Blue Polyurethane 10mm x 50m PUN-H-T Series, 8048701, Шланг

Festo Compressed Air Pipe, Hydrolysis-Resistant, -0.95 to 10 Bar Operating Pressure Range - PUN-H-10X1,5-TBL

Give media a smooth path through your system with this compressed air pipe from Festo. Installation is simple, as you can attach it to a pneumatic port by inserting the end into a push-in connector with an outside diameter of 10mm. Since it handles an operating pressure range between -0.95 and 10 bar, you can use the tubing in an array of different environments. It's food-safe, so makes the grade for any task where you need to meet high hygiene standards.

Features & Benefits

• Shore hardness of D52+/-3 indicates rigidity to resist punctures
• Tested to withstand energy chain application of over five million cycles, ensuring durability
• 50m long, so makes convenient long-distance connections
• Hydrolysis resistance helps prevent moisture absorption and boost hygiene

Applications

• Automotive industry
• Conveyor systems
• Construction equipment
• Marine engineering

What's this pipe made from?

This pipe is made from tough polyurethane that resists chemicals and solvents, so it can withstand contaminated conditions.

How flexible is this pipe?

A minimum bending radius of 28mm means you'll find it's flexible enough to bend around corners without suffering damage or losing pressure.

Datasheet

PUN-H-10X1,5-TBL Specification Sheet
