135906, Wera 1/4 Hex Adjustable Torque Screwdriver, 1.2 → 3Nm, Динамометрическая отвертка

Kraftform Kompakt VDE 16 Adjustable Torque, Extra Slim 1, 16-Piece Screwdriver Set.

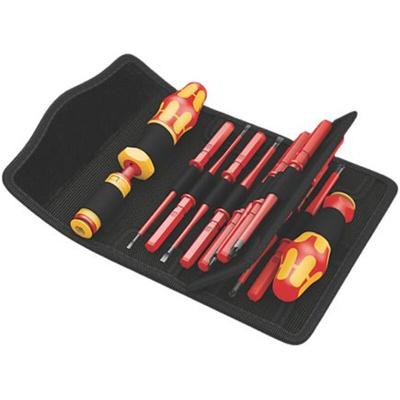

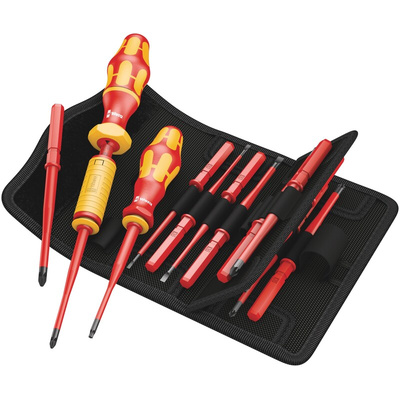

From Wera this is the Kraftform Kompakt, 16-piece, VDE adjustable torque screwdriver set with the VDE torque holder. The VDE 16 Set has the recognizable Wera design is easy to use and set also giving you the satisfying audible and tactile clicks when your required settings and scale values are reached. The VDE torque holder is only for use with the Wera 154 mm long VDE interchangeable blades. The torque screwdriver set has been tested at 10,000 V in accordance with IEC 60900 guaranteeing you safe working at 1,000 V. 11 of the 14 torque blades supplied have a slim reducing diameter, excellent for accessing and loosening sunken screws and spring elements plus with integrated insulation protection. You can adjust and set the required tork value from the adjuster built into the handle which is the Kraftform Plus handle with hard and soft areas ensuring high torque transfer and quicker working. To complete the kit is supplied within a hard wearing, organized tool pouch for safe and easy storage.

Features and Benefits.

• VDE 16 Adjustable Torque, Extra Slim 1, 16-Piece Screwdriver Set.

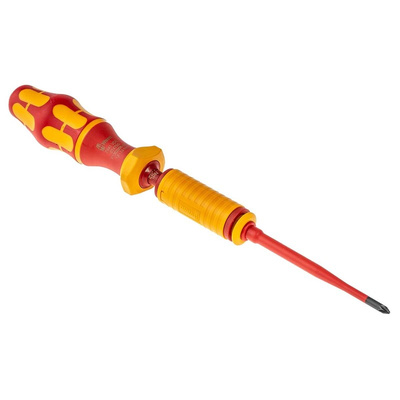

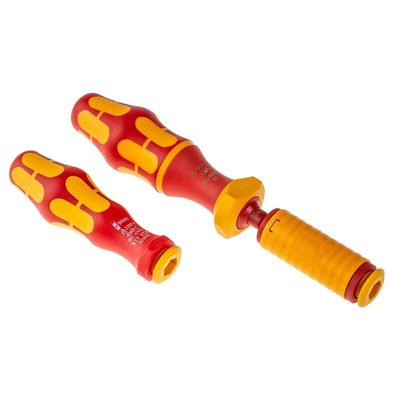

• Adjustable VDE torque holder and handle.


• Torque range 1.2 to 3.0 Nm.

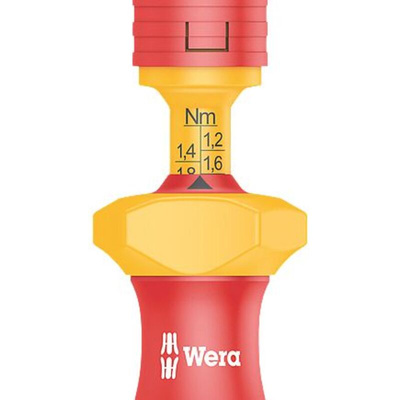

• Readable scale measure provides ± 6% accuracy (EN ISO 6789).


• Set tested to 10,000 V (IEC 60900).


• Guaranteed safe working at 1,000 V.

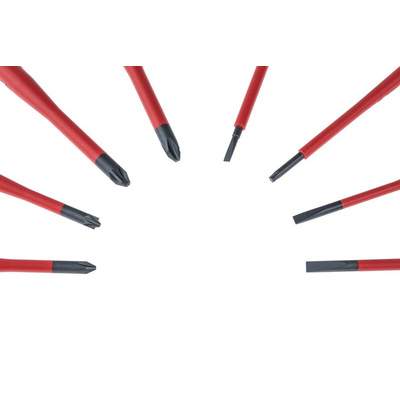

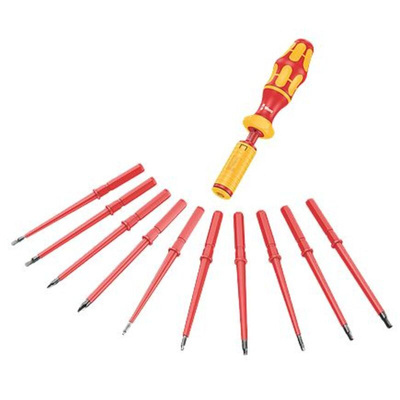

• 14 x VDE interchangeable blades (154 mm long) (11 blades with reducing diameter).


• Integrated insulation protection.


• VDE Holder adjustable torque 1.2 to 3.0 Nm.


• Kraftform Plus handle.


• Inter-changeable blasé system allows quick blade changes.


• Weight 845 g.


• Size 230 x 120 x 82 mm.

Applications.

• Assembly.


• Maintenance.


• Accessing sunken screws and spring elements.


• Applications where insulation protection required.

What the VDE 16 Adjustable Torque Screwdriver kit includes.

• 1 x 817 VDE, Hex handle - 9 x 102 mm.


• 2 x KK 65 iS PZ - 1 x PZ 1 x 154 mm, 1 x PZ 2 x 154 mm.


• 1 x KK 67 I Torx – TX 10 x 154 mm.


• 1 x KK 60 I – 0.4 x 2.5 x 154 mm.


• 2 x KK 62 iS – PH 1 x 154 mm, PH 2 x 154 mm.


• 2 x KK 65 iS PZ/S – 1 x 154 mm, 2 x 154 mm.


• 3 x KK 67 iS TORX – TX 15 x 154 mm, TX 20 x 154 mm, TX 25 x 154 mm.


• 3 x KK 60 iS – 0.6 x 3.5 x 154 mm, 0.8 x 4 x 154 mm, 1 x 5.5 x 154 mm.


• Hard wearing organized tool pouch.

We have in stock and available more than 74 Wera torque screwdrivers with drives including, Halfmoon, Hex, Hex Plus, HIOS, Torx and Torx Plus, ranging from adjustable, to pre-set and fixed with an incredible range of drive sizes.
