Fluke Networks Quick Clean Cleaner Solution for 1.5mm Connectors, QuickClean-1.25-1P

Fluke Networks Quick Clean 1.25 mm Cleaner

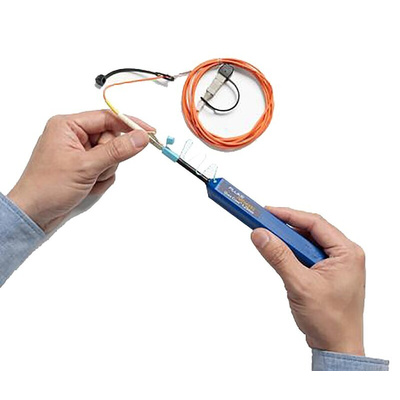

Fluke Networks Quick Clean 1.25 mm Cleaner is designed to clean LC, LC secure keyed and MU connectors. Unlike traditional swab cleaners that rely on the technique of the user, the Quick Clean Cleaners provide consistent cleaning every time. The operator can easily engage the cleaner using a simple push motion, an audible "click" is heard when the process is completed.

These tools are effective at removing contaminants during fibre optic installation that include:
• Road Dust (ISO 12103-1)
• Skin Oil Residue
• Salt Water Residue
• Alcohol Residue
• Vegetable Residue
• Graphite Dryer Lint
• Hand Lotion
• Distilled Water Residue

Features and Benefits

• Moulded with an antistatic material
• Simple pushing motion to engage tool
• Audible CLICK to alert the user when tool is fully engaged
• Clean over 525 end faces per unit
• Tip extender to 208 mm for hard to reach connectors
• Crush resistant to over 250 N
• Impact resistant to survive drops over 1.5 m

Fluke Networks Quick Cleaner

The Fluke Networks quick cleaner is designed to clean fibre optic connector end-faces on patch cables, within adapters or patch panels. It contains a single pack of a cleaner of 1.25mm fibre, LC and MU with either UPC or APC polished ferrules. Unlike traditional swab cleaners that rely on the technique of the user, this cleaner provides consistent cleaning every time. This tool is particularly effective at removing contaminants during fibre optic installation that include road dust, skin oil residue, saltwater residue, alcohol residue, vegetable residue, graphite dryer lint hand lotion and distilled water residue.

Features and Benefits

Simple pushing motion to engage tool
Audible “click” to alert the user when tool is fully engaged
Clean over 600 end faces per unit
Tip extender to 208mm for hard to reach connectors
Crush resistant to over 250N
impact-resistant to survive drops over 1.5m
Cleans male and female MT ferrule
Nozzle is keyed for precise alignment of the cleaning tip to the fibre array
Alignment cap lid opens for cleaning the unmated connectors

Applications

Data centres
Telecommunication

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
ISO 12103-1

Quick Cleaner for 1.25mm Connector Datasheet
