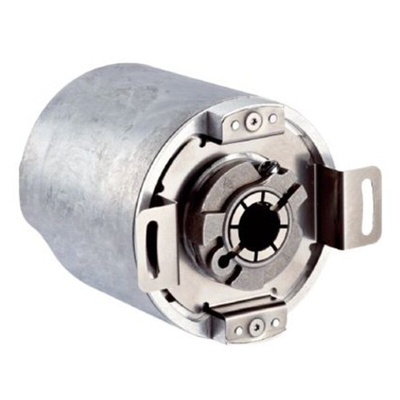

842E-SIP8BA, Allen Bradley 842E Series Absolute Absolute Encoder, 262144ppr ppr, Analogue, Binary Signal, Hollow Type, 10mm Shaft, Энкодер

842E EtherNet/IP Absolute Encoders

Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.
Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.

Features and Benefits

EtherNet/IP interface
Simple and fast set up
Single-turn 18-bit resolution or multi-turn 30-bit resolution
Embedded switch
Device Level Ring (DLR)
Revolution divisor
Solid and blind hollow shaft options
M12 Connectors
Status indication LEDs
Hardware/software IP address setting
IP67 Rated

Allen Bradley Absolute Encoder, Ethernet Interface, ≤200mA Current Rating - 842E-SIP8BA

When you need high-precision feedback on the speed and position of your machine's components, choose this absolute encoder from Rockwell Automation's Allen Bradley range. It converts the angular position of a shaft or axle into an electrical signal to be read by digital devices. Thanks to its 18-bit resolution, this unit offers a high level of accuracy. For simple information processing, it's equipped with an industry-standard Ethernet/IP interface, with optional redundancy via a DLR to keep your data safe in the event of a fault. It's commonly used in packing machines, robotics and rotary table positioning.

Features & Benefits

• 262,144 steps per revolution for reliable measurements
• Standardised M12 connectors offer widespread compatibility
• IP67 rating indicates the unit can withstand contaminants such as dust, as well as complete immersion in water up to 1m deep
• Broad operating temperature range between -30°C and +85°C for use in challenging environments

Standards and Certifications

• ISO 9001:2008
• ISO 14_001:2009
• CE

How can I tell if this device is working properly?

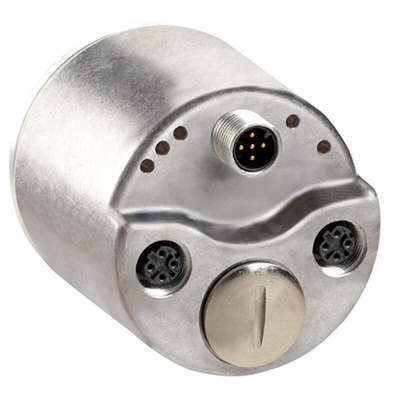

For straightforward troubleshooting, the screw cover features five LED indicators. These provide at-a-glance status information on the device's connections, including Ethernet, power, data transmission and IP address.
