842E-MIP6BA, Allen Bradley 842E Series Absolute Absolute Encoder, 262144ppr ppr, Analogue, Binary Signal, Hollow Type, 8mm Shaft, Энкодер

842E EtherNet/IP Absolute Encoders

Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.
Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.

Features and Benefits

EtherNet/IP interface
Simple and fast set up
Single-turn 18-bit resolution or multi-turn 30-bit resolution
Embedded switch
Device Level Ring (DLR)
Revolution divisor
Solid and blind hollow shaft options
M12 Connectors
Status indication LEDs
Hardware/software IP address setting
IP67 Rated

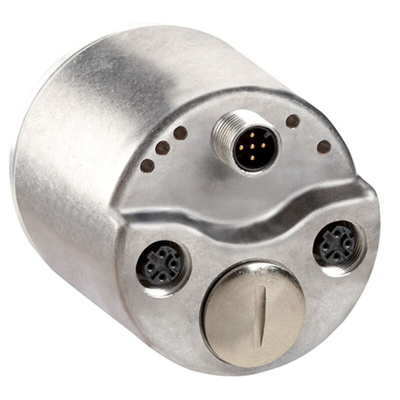

Allen Bradley Absolute Encoder, 8mm Shaft Diameter, Hollow Shaft Flange Type - 842E-MIP6BA

Monitor the movement of industrial equipment with this hollow-shaft absolute encoder from Rockwell Automation's Allen Bradley range. When the unit is fitted on moving components, it measures the motion with a rotary disc and produces a binary output signal for transmission to your control network. Thanks to its hollow shaft, you can adjust the device to suit your motor, making it a versatile option. Its housing has an IP67 rating, so it's dust-proof and withstands water up to a metre deep.

Features & Benefits

• Ultra-high 18-bit resolution to ensure precision in your measurements
• Built-in Ethernet/IP switch supports network connectivity for easy information exchange in your automation system
• 10/100Mbps transmission speed means it can operate at higher or lower transfer rates
• 200mA maximum operating current, so it's an energy-saving device

Standards and Certifications

• EN 61000-6-2
• EN 61000-6-3
• IEC 60529
• CE Marked for all applicable directives

Can I use this device in demanding environments?

Yes, you can. This absolute encoder has a wide operating temperature range between -30°C and +85°C, so it works safely in demanding conditions.
