842E-MIP7BA, Allen Bradley 842E Series Absolute Absolute Encoder, 262144ppr ppr, Analogue, Binary Signal, Hollow Type, 3/8in Shaft, Энкодер

842E EtherNet/IP Absolute Encoders

Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.
Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.

Features and Benefits

EtherNet/IP interface
Simple and fast set up
Single-turn 18-bit resolution or multi-turn 30-bit resolution
Embedded switch
Device Level Ring (DLR)
Revolution divisor
Solid and blind hollow shaft options
M12 Connectors
Status indication LEDs
Hardware/software IP address setting
IP67 Rated

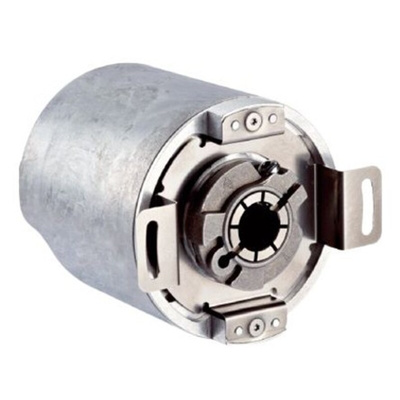

Allen Bradley Absolute Encoder, Hollow Shaft Flange Type, IP67 Rating - 842E-MIP7BA

To monitor the movement of industrial equipment, choose this absolute encoder from Rockwell Automation's Allen Bradley range. The motion of machine parts causes its disc to rotate to a different position, which the encoder records and transmits as a binary signal to your controller. For reliably precise readings, the unit achieves measurements with ultra-high accuracy thanks to its 18-bit resolution. Thanks to a wide operating temperature range between -30°C and +85°C, this is a safe choice for use in challenging environments.

Features & Benefits

• Hollow shaft lets you adjust the device to suit your motor for increased versatility
• Maximum operating humidity of 90% RH, so you can use it in areas that experience high levels of water vapour
• Onboard Ethernet interface supports the transfer of data through your network
• 200mA maximum operating current indicates this is an energy-saving component

Standards and Certifications

• CE Marked for all applicable directives
• IEC 60529
• EN 61000-6-2
• EN 61000-6-3

What's the transmission speed of this unit?

This encoder supports transfer rates of 10Mbps and 100Mbps and can switch between them for versatility.
