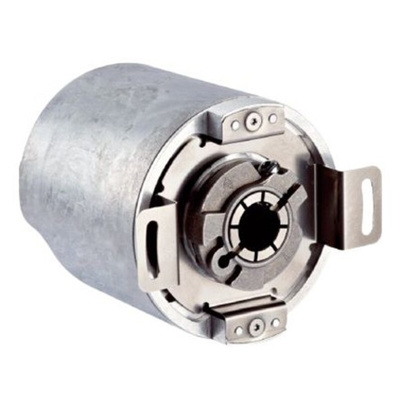

842E-MIP8BA, Allen Bradley 842E Series Absolute Absolute Encoder, 262144 ppr, Analogue, Binary Signal, Hollow Type, 10mm Shaft, Энкодер

842E EtherNet/IP Absolute Encoders

Allen Bradley 842E series ultra-high resolution EtherNet/IP absolute encoders provide dual-port Ethernet and M12 connectors. The 842E series encoders are designed for high performance and reliability in harsh industrial environments. Encoders include an embedded EtherNet/IP switch to connect additional Ethernet/IP capable products in series and/or support a Device Level Ring (DLR) for Ethernet media redundancy.
Available in single-turn 18-bit resolution and multi-turn 30-bit resolution, these high-resolution absolute encoders are ideal for automotive, material handling and general factory automation applications.

Features and Benefits

EtherNet/IP interface
Simple and fast set up
Single-turn 18-bit resolution or multi-turn 30-bit resolution
Embedded switch
Device Level Ring (DLR)
Revolution divisor
Solid and blind hollow shaft options
M12 Connectors
Status indication LEDs
Hardware/software IP address setting
IP67 Rated

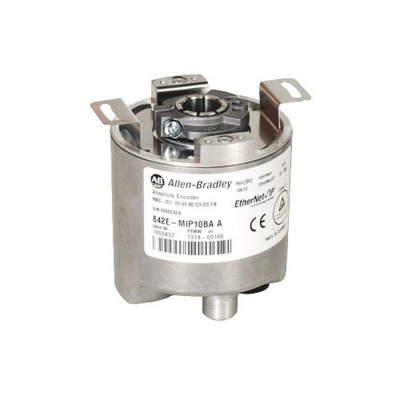

Allen Bradley Absolute Encoder, ≤200mA Current Rating, 10mm Shaft Diameter - 842E-MIP8BA

Use this absolute encoder from Rockwell Automation's Allen Bradley range for precise monitoring and velocity control of your industrial servo motors. It monitors the motors' shaft or axle rotation and sends the information back as digital signals. The unit is made of robust aluminium material with high mechanical strength and corrosion resistance, so it won't rust when used in harsh environments. You'll find it useful in process and production facilities, as well as in robotics and automation processes that need precise positioning and speed.

• Integrated Ethernet/IP (internet protocol) switch to allow for monitoring over the internet
• Ingress protection rating of IP67 to withstand dust and immersion in up to 1m of water
• Wide operating temperature range from -30°C to +85°C for use in demanding conditions
• Can deliver both analogue and digital signal output for versatility

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)
• EN (European Standard)

What's the power rating of this encoder?

The power rating of this encoder is 3W. This makes it an energy-efficient monitoring solution.
