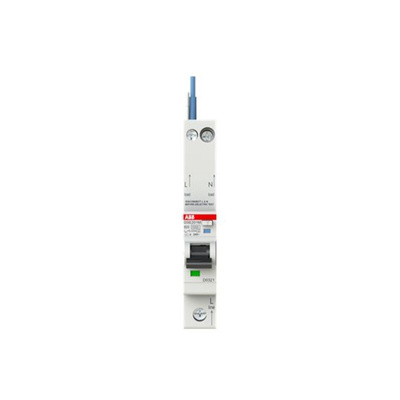

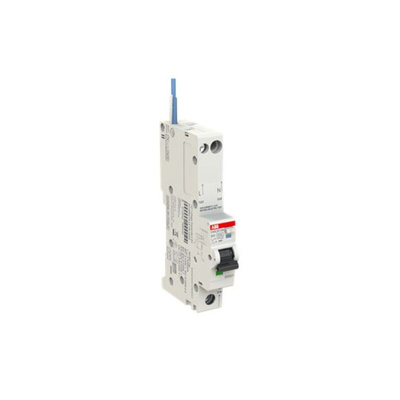

2CSR275151R1205 DSE201 M B20 A30 - N Blue, ABB RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type B, System Pro M Compact Range, Автоматический выключатель

1367779
Номер производителя: 2CSR275151R1205 DSE201 M B20 A30 - N BlueПроизводитель: ABB
Цена за шт.
41640.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ABB RCBO, 3W Power Loss, 4kV Rated Impulse Withstand Voltage - DSE201 M Series - 2CSR275151R1205 DSE201 M B20 A30 - N Blue

Don't let residual currents and overloads trip up productivity – protect your circuits with this RCBO from ABB. In the event of a fault, it steps in to cut power to your equipment instantly, saving it from damage. The unit's thermoplastic housing can resist impact, so it's tough enough to brave the rigours of tough industrial environments. Thanks to its narrow 18mm width, it sits neatly in setups with limited space. After it's done its job, a toggle switch makes it a doddle to reset.

Features & Benefits

• Mechanical endurance of 20,000 operating cycles for long-term performance
• 4kV rated impulse withstand voltage to handle sudden power surges without suffering damage
• 20A current rating makes it suitable for high-current-consuming applications
• Wide operating temperature range between -25°C and +55°C for use in demanding conditions

Applications

• Residential wiring
• Industrial lighting systems
• Process and packaging equipment

Is this RCBO finger-safe?

Yes, this unit's terminals have an IP20 rating, which means that it's protected against anything larger than 12mm, like your fingers. This prevents contact with live parts and enhances safety.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz

Техническая спецификация
pdfDatasheet
pdfBrochure - DSE201, DSE201 M Compact Design With EnhancednProtection
pdfDatasheet - 2CSR275151R1205 DSE201 M B20 A30 - N Blue
pdfCatalogue - Residual Current Devices
pdfBrochure - DSE201, DSE201 M Compact Design With EnhancednProtection
pdfDatasheet - 2CSR275151R1205 DSE201 M B20 A30 - N Blue
pdfCatalogue - Residual Current Devices
