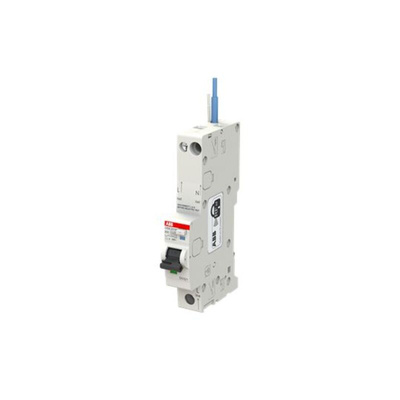

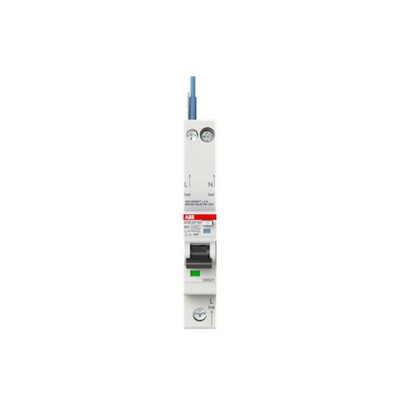

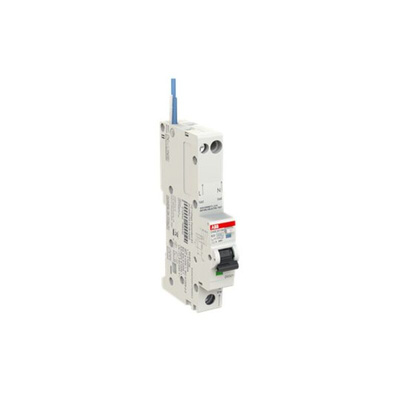

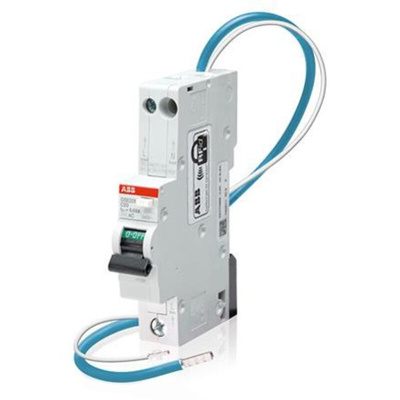

2CSR275151R1204 DSE201 M C20 A30 - N Blue, ABB RCBO, 20A Current Rating, 1P+N Poles, 30mA Trip Sensitivity, Type C, System Pro M Compact Range, Автоматический выключатель

ABB RCBO, 264V Max Operating Voltage, 500V AC Insulation Voltage - DSE201 M Series - 2CSR275151R1204 DSE201 M C20 A30 - N Blue

Want to guard your appliances against electrical faults? Put with this RCBO from ABB on duty. It uses a thermal-magnetic tripping system to monitor your circuit and cut power when it senses imbalances in the current flow, preventing the risk of fire and electric shocks. The unit has type-C characteristics, which means it trips at 5 to 10 times its rated 20A current, making it a practical option for applications where you expect frequent power surges. Thanks to its modular design, this piece of kit is a good fit when teamed up with other circuit-protection components.

Features & Benefits

• Breaking capacity of 10kA to withstand high inrush currents without experiencing damage
• Broad operating temperature range between -25°C and +55°C for use in challenging conditions
• Green and red window for easy identification of the contact position
• Maximum operating voltage of 264V for use in low voltage settings

Applications

• Commercial buildings
• Warehouses and storage facilities
• Automotive workshops

What size is this RCBO?

This unit has compact dimensions of 115 (H) x 17.6 (W) x 68.9mm (D), meaning it's a space-efficient solution for use in confined settings.

ABB RCBO's & RCCB's

RCBO's : DIN rail mounting with an operating temperature range of -25 to +55 °C. Optimum frequency range of 50 to 60Hz
