RS PRO Control Cable, 6 Cores, 0.22 mm², Screened, 100m, White PVC Sheath, Кабель

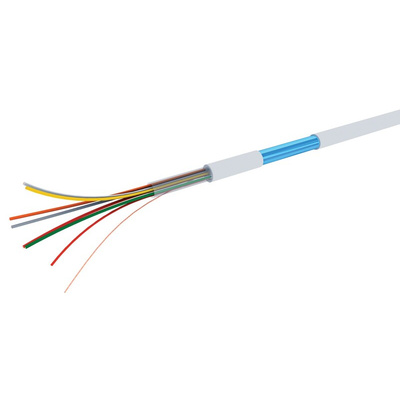

RS PRO Screened Security Cable, 6 Core, PVC Sheath, 0.22 mm², 100 m

Power your alarm system with this cable from RS PRO. It's suitable for embedding in a wall or installing underground, making it more difficult to tamper with your security system. It's also flexible, so it's easy to bend or manipulate through small spaces.
The cable's outer sheath is made of flame-retardant polyvinyl chloride (PVC), so you don't need to worry about it catching alight in the event of a fire. A screen placed over the cable's insulated core stops external electrical noise from interfering with its signal, reducing the risk of false alarms. The PVC sheath also prevents the cable from tearing, so it will last for longer.
This product is useful for wiring passive door sensors and motion detectors. You can use it at home or to secure a workplace. As it contains only minimal levels of any harmful materials, the cable is also Restriction of Hazardous Substances (RoHS) compliant.

Features and Benefits

• Multicore cable shape
• Copper conductor material
• Cross-sectional area of 0.22 mm²
• Drain wire
• Flame-retardant
• Self-extinguishing fire behaviour
• Polyvinyl chloride (PVC) sheath insulation material
• Jacket ripcord
• Maximum operating temperature of +70°C
• Minimum operating temperature of -10°C
• Six cores
• Screened
• Aluminium tape screen type
• Outer diameter of 4.4 mm
• Reel length of 100 m
• Series of 2XX0 B
• White sheath colour
• Voltage rating of 200 V

Datasheet

Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021
