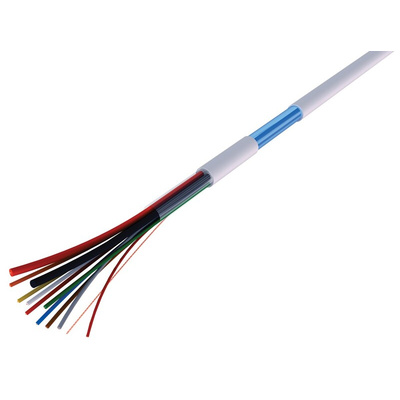

RS PRO Control Cable, 8 Cores, 2 x 0.75 mm², 6 x 0.22 mm², Tranxalarm, Screened, 100m, White PVC Sheath, Кабель

RS PRO 8 Core Screened Security Cable 2 x 0.75 mm², 6 x 0.22 mm² CSA, Polyvinyl Chloride PVC Sheath, 100 m

This RS PRO screened security cable set is designed for use in alarm systems. It's commonly used by installation experts and electricians working in the security industry. Inside this pack, you'll find two 0.75 mm² wires and six 0.22 mm² wires. They're contained within durable PVC (polyvinyl chloride) sheaths for effective insulation.

There are eight core cables, with bare copper conductors for an element of flexibility. The conductors have a resistance of 26 Ω/km @ 0.75 mm² and 96 Ω/km @ 0.22 mm². They have a voltage rating of 200 V (volts) @ 0.22 mm², 250 V @ 0.75 mm². The cables have an outer diameter of 6 mm.

As part of our top-rated RS PRO collection, this set has been extensively tested by engineers for durability and consistency. The outer sheath is flame-retardant and self-extinguishing for fire safety. A drain wire and jacket ripcord is included.

Features and Benefits

• Multicore security cable
• MULTI 275 + n B series
• Eight cores
• Copper conductors
• PVC insulation
• Aluminium tape screen
• Reel length of 100 m
• Operates from -10°C to +70°C
• Cross-sectional areas of two x 0.75 mm² and six x 0.22 mm²
• Screened
• White sheath
• Conductor resistance of 26 Ω/km @ 0.75 mm² and 96 Ω/km @ 0.22 mm²
• Jacket ripcord included
• Multicore cable
• Voltage rating of 200 V @ 0.22 mm², 250 V @ 0.75 mm²
• Operating temperature range from -10°C to +70°C
• Drain wire included
• Flame retardant
• Self-extinguishing
• Outer diameter of 6 mm
• Polyvinyl chloride PVC sheath
• RoHS compliant for minimal use of restricted hazardous materials
• IEC 60332-1 compliant for safety and quality

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet

Datasheet

Cable Selection Guide

RS PRO Wiring and Connectivity Selection Guide 2021
