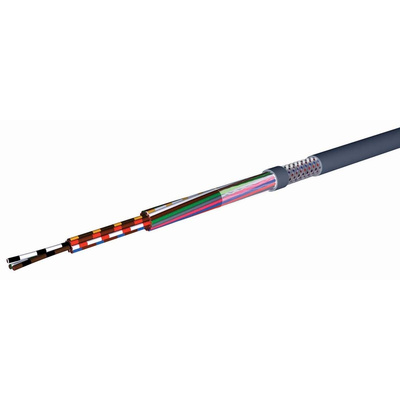

RS PRO Multi-Conductor Data Cable, 0.25 mm², 4 Cores, 23 AWG, Screened, 100m, Grey Sheath, Кабель

RS PRO 4-Core CY Control Cable, Screened, 0.25 mm², 100 m

This four-core data cable from RS PRO provides a slim, convenient way to carry both analogue and digital signals in controlled environments. The stranded core design ensures easy handling, and the braided shield layer helps to reduce noise transmission.
The cable has a flame retardant polyvinyl chloride (PVC) sheath for increased safety and the internal cores are colour-coded for easy identification. The small diameter ensures that it is easy to fit, even in crowded spaces.
This product is ideal as a fixed data transmission cable in areas where there are no pre-made cable runs. This could include carrying audio/visual data in a studio or control signals for machinery. The 300 V, 4 A current rating means the cable can directly power smaller pieces of equipment as well.

Features and Benefits

• American wire gauge size of 23 AWG
• Multicore cable shape
• Copper conductor material
• Conductor resistance of 79.9 Ω/km
• Cross-sectional area of 0.25 mm²
• Current rating of 4 A
• Not an earth cable
• Flame retardant
• Length of 100 m
• Operating temperature range of -30°C to +70°C
• Minimum bend radius of 8 x diameter
• Four cores
• Outer diameter of 4.6 mm
• Tinned copper braid screen type
• Screened
• LiYCY series
• Grey sheath colour
• Polyvinyl Chloride (PVC) sheath material
• Voltage rating of 300 V
