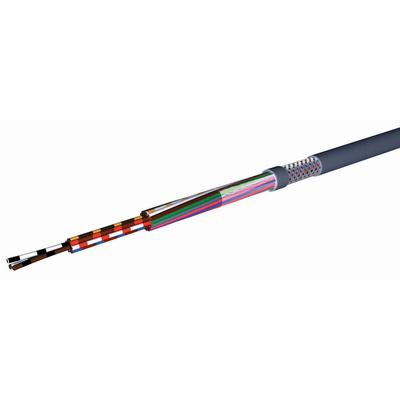

RS PRO Multi-Conductor Data Cable, 0.34 mm², 4 Cores, 22 AWG, Screened, 100m, Grey Sheath, Кабель

RS PRO 4 Core CY Control Cable, Screened, 0.34 mm², 100 m

This compact and slender four-core data cable from RS PRO is designed to carry both analogue and digital signals in controlled environments. It's ideal for areas without pre-made cable runs, where it will work as a fixed data transmission cable.


For improved security, the cable has a flame-retardant polyvinyl chloride (PVC) sheath. The stranded core has been designed to make it easy to handle, and there's an extra braided shield layer to help prevent noise transmission. The internal cores have also been colour-coded for easy identification.


Thanks to its narrow diameter, this four-core cable will fit comfortably, even if you're working in a crowded space. The cable is suitable for carrying control signals for machinery or audio/visual data in a studio. It can also power small pieces of equipment directly, as it has a 300 V, 6 A current rating.

Features and Benefits

• Wire size of 22 AWG (American Wire Gauge)


• Multicore cable shape


• Copper conductor material


• Conductor resistance of 58.9 Ω/km


• Cross-sectional area of 0.34 mm²


• Current rating of 6 A


• Not an earth cable


• Flame-retardant


• Length of 100 m


• Operating temperature range of -30°C to +70°C


• Minimum bend radius of 8 x diameter


• Four cores


• Outer diameter of 4.9 mm


• Tinned copper braid screen type


• Screened


• Grey sheath colour


• Polyvinyl chloride (PVC) sheath material


• Voltage rating of 300 V
