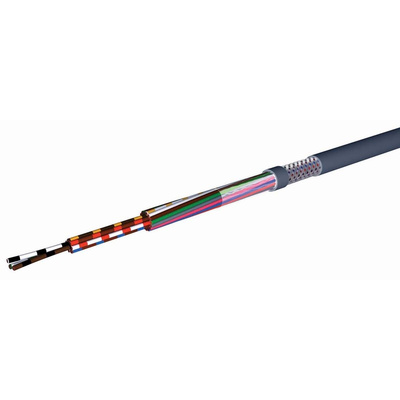

RS PRO Multi-Conductor Data Cable, 0.75 mm², 4 Cores, 18 AWG, Screened, 100m, Grey Sheath, Кабель

RS PRO 4 Core CY Control Cable, Screened, 0.75 mm², 100 m

Choose this RS PRO four-core data cable for carrying both digital and analogue signals in controlled environments. Thanks to its stranded core design, it's easy to handle, while the braided shield layer keeps noise transmission to a minimum.


For protection against fire, there's a flame-retardant polyvinyl chloride (PVC) sheath surrounding the cable. The internal cores are easy to identify as they're colour-coded. The cable's slim design and small diameter make it a good choice for running cables in tight or crowded spaces.


This cable is ideal for use in settings without pre-made cable runs as a fixed data transmission cable. It's suitable for carrying both control signals for machinery and audio/visual data in a studio. It can also be used to directly power small pieces of equipment thanks to its 300 V, 12 A current rating.

Features and Benefits

• Wire size of 18 AWG (American Wire Gauge)


• Multicore cable shape


• Copper conductor material


• Conductor resistance of 24.5 Ω/km


• Cross-sectional area of 0.75 mm²


• Current rating of 12 A


• Not an earth cable


• Flame-retardant


• Length of 100 m


• Operating temperature range of -30°C to +70°C


• Minimum bend radius of 8 x diameter


• Four cores


• Outer diameter of 6.2 mm


• Tinned copper braid screen type


• Screened


• Grey sheath colour


• Polyvinyl chloride (PVC) sheath material


• Voltage rating of 300 V
