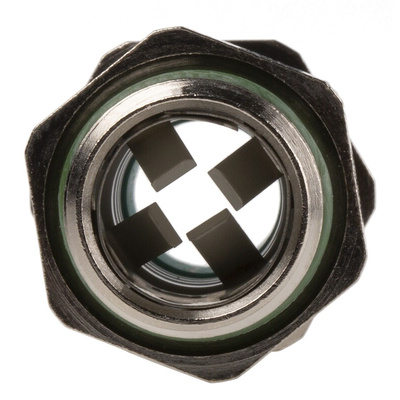

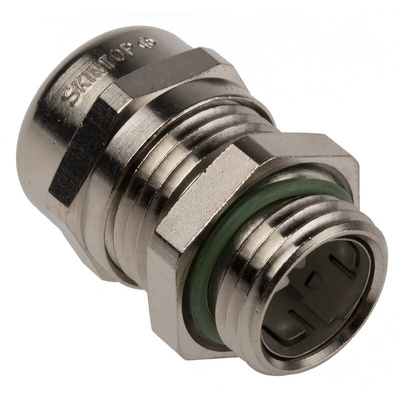

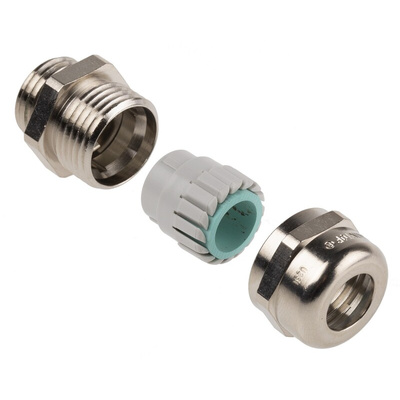

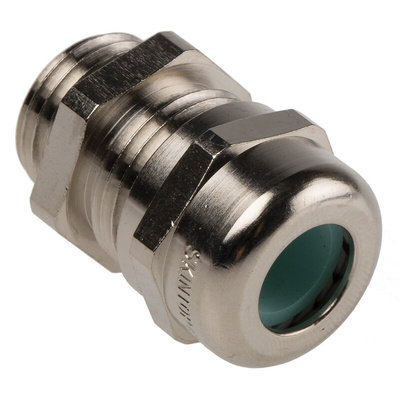

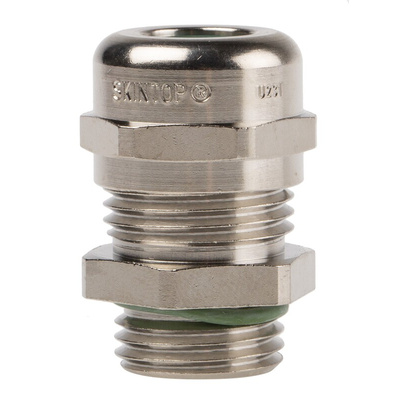

53112531, Lapp SKINTOP Series Nickel Plated Brass Cable Gland, M16 Thread, 4.5mm Min, 9mm Max, IP68, Кабельный ввод

LAPP Nickel-Plated Brass Cable Gland, 4.5 to 10mm Cable Diameter Range, M16 Thread - SKINTOP Series - 53112531

Protect cables from damage and signal interference with this cable gland from LAPP. The nickel-plated brass body is strong and corrosion-resistant, reinforcing cable entry points against strain and wear. Fitted with a seal insert and O-ring, it has an IP68 ingress protection rating, so you can be sure dust and water can't get in. For electromagnetic shielding, four internal springs ensure reliable and low-resistance contact with the cable's copper screen.

Features & Benefits

• Wide operating temperature between -40°C and +100°C for use in demanding environments
• Uses a standard M12 thread for easy compatibility

Applications

• Public buildings and transport
• Textile industry
• Power distribution

What safety features does this cable gland have?

The cable gland is made from halogen-free material and is flame-retardant to maximise the safety of fixed wiring installations. Suitable for use in class III hazardous locations, you can use it where ignitable fibres may be present.

Datasheet

Instruction Sheet - 53112531
