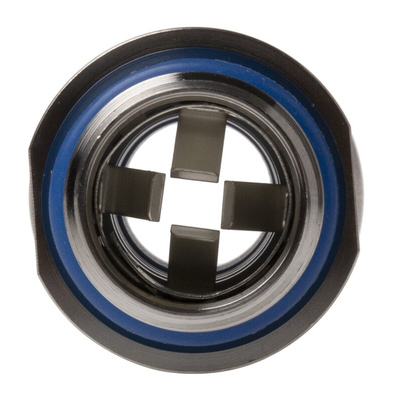

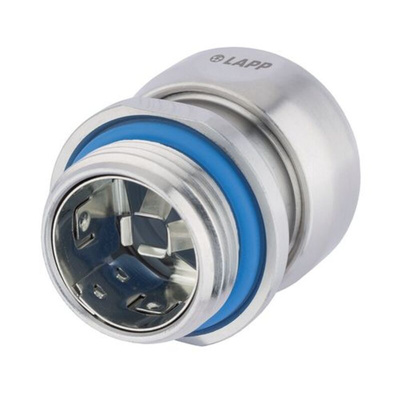

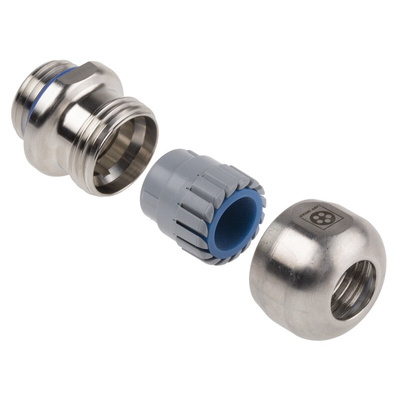

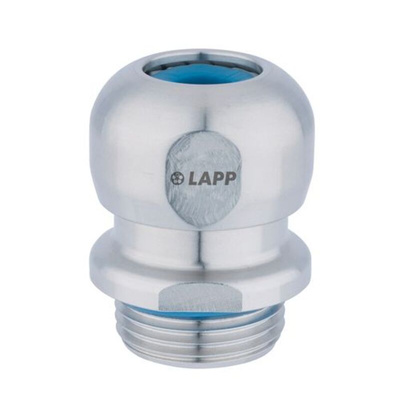

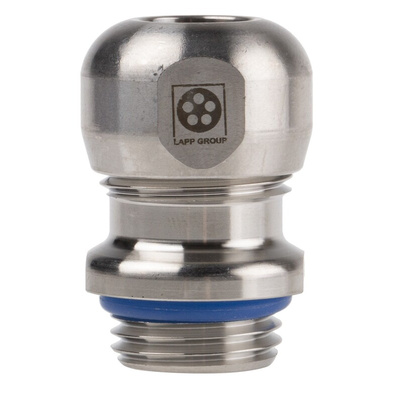

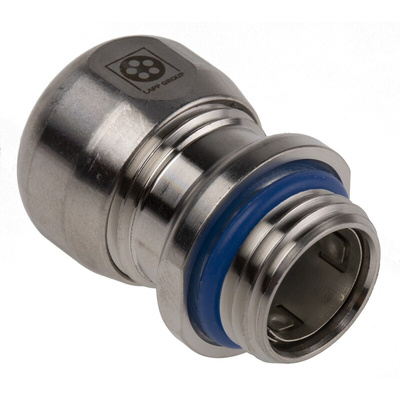

53806722, Lapp SKINTOP Series Metallic Stainless Steel Cable Gland, M16 Thread, 6mm Min, 10mm Max, IP68, IP69, Кабельный ввод

SKINTOP INOX SC Cable Glands

From Lapp, the Skintop INOX SC cable glands have a robust stainless steel construction, and offer a fantastic level of mechanical resistance and environmental protection in cable management.

The easy to install INOX SC gland has a smooth and compact design, which accommodates a wide clamping range. The gland also features a low resistance screen contact, and conductive flexible EMC contact, which offers a high degree of protection against interference signals.

Features and Benefits

• IP68
• EMC Protection
• Temperature Resistant
• Sea-water Resistant
• Good Chemical Resistance
• Suitable for Food and Beverage Environments

Applications

The INOX series of cable glands are suitable for environments where hygiene control is a concern, such as:

• Pharmaceutical Industry
• Food Industry
• Bottling Plants and Breweries

Their resistance to seawater also makes them suitable for offshore applications. They can also be used for EMC-compliant earthing of the copper braiding, or for cables with copper shaft sheath.

Environment

The glands are sealed to IP68, which means they are highly resistant to dust ingress and resistant to water even up to shallow submersion. This means they are suitable for use in harsh environments and some open air applications.

Standards

DIN EN ISO 14 159, DIN EN 1672-2, RoHS, CE

LAPP Cable Gland, Seawater Resistant, Halogen-Free - SKINTOP Series - 53806722

For smart and safe cable management, choose this cable gland from LAPP. It offers a quick and secure way to hook up conductors to equipment or panels, which helps to keep your connections free from dust and moisture. A durable stainless steel construction makes the part suitable to use in demanding settings like oil rigs and boatyards. Thanks to its resistance to chemicals and corrosion, you can depend on its reliability in hygienic applications where everyday washdowns are essential.

Features & Benefits

• IP68-rated, so it's dustproof and withstands temporary immersion in water
• Electromagnetically compatible to minimise the chance of interference with nearby electronics
• Fits cables between 6 and 10mm in diameter for versatility

Applications

• Breweries
• Medical and pharmaceutical manufacturing
• Offshore industry
• Power utilities

Is this a halogen-free product?

Yes, this cable gland is halogen-free, so it emits no toxic fumes in hot or burning conditions.

Datasheet

Instruction Sheet - SKINTOP INOX SC Series
