E36311A, Keysight Technologies Bench Power Supply, , 80W, 3 Output , , 0 → 6V, 1 A, 5 A, Блок питания

Keysight E36300 Series Programmable DC Power Supplies

The Keysight E36300 series of bench power supplies offer three outputs with power of 80 W or 160 W with line/load regulation of 0.01%. Front-panel buttons allow you to turn any output on or off and you can configure each output with 2-wire local sensing or 4-wire remote sensing. The 4-wire sensing removes losses caused by IR drops in your power-delivery wires.
All outputs have over-voltage, over-current and over-temperature protection. You can programmatically change the sense configuration from 2-wire to 4-wire through an internal relay, eliminating the need for shorting bars or jumpers often used on most power supplies. The front-panel binding posts let you connect banana plugs, bare wires or spade lugs. Each set of binding posts is colour coded to match the display and control buttons.

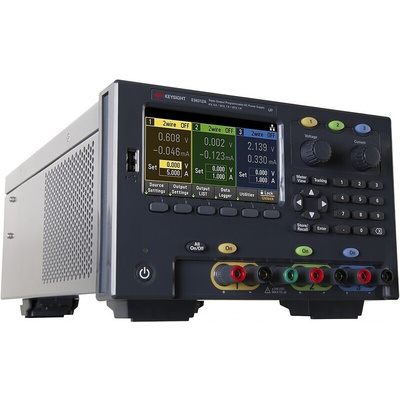

A 4.3 inch colour display lets you see measured output voltage and current, voltage/current settings, and 2/4-wire sense configuration. Soft keys under the display let you set output parameters, configure a digital output for triggering or enabling alarms, and configuring the internal data logger. With the data logger, you can view output voltage and current in an oscilloscope-like display, then save screen images (PNG or BMP formats), and save data (up to 7 Mbytes) in CSV format.
A battery backup prevents the instrument from losing data should you have to move it before retrieval. In addition to the data logger, the E36300 series can store output lists. These allow you to set up a power sequence for those applications and tests that require bringing up power rails individually. You can program voltage, current, and the duration of each setting. The list can also be triggered based on internal or external events and you can repeat the list to get longer sequences.

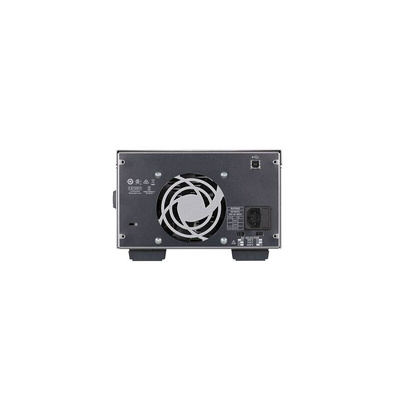

Connectivity includes a rear-panel USB port and a LAN/LXI port (E36311A USB only). All units are programmable using familiar SCPI commands or through Interchangeable Virtual Instrument (IVI) drivers. If you are replacing an E3631A power supply with the new E36300 series and need software compatibility, the E36300 lets you change its programming ability to match E3631A, which eliminates any software changes. Finally, you can control the E36300 supplies through Keysight's BenchVue software.

Features

Large 4.3-inch LCD color display
Ability to see full voltage and current for all three outputs at the same time
Color-coded channels
Individual knobs for voltage and current
LAN (LXI), USBB
Digital I/O port
Individual on/off on all channels
Electrically isolated channels
Front and rear output terminals
Excellent programming/readback accuracy
Low output ripple and noise
Excellent line/load regulation: 0.01%
Fast transient response time: < 50 us
Small current measurement: 80 uA, ideal for characterising battery drain over long periods of time over a wide current range
Low acoustic noise
Auto series/parallel connections
2-wire or 4-wire remote sense
Data logging
Output sequencing
Output LIST
Output coupling
Tracking
Triggering
Over voltage, over current and over temp protection

Choice:

136-8574: E36311A: 3 outputs, 6 V, 5 A and ±25 V, 1 A, 80 W: USB
136-8575: E36312A: 3 outputs, 6 V, 5 A and 2x 25 V, 1 A, 80 W: LAN, USB
136-8576: E36313A: 3 outputs, 6 V, 10 A and 2x 25 V, 2 A, 160 W: LAN, USB

Supplied with

AC power cord fitted with a UK Type g 3-pin mains plug.
