RS PRO Cable Tester Cat 5e, Cat 6, Cat 6a, Coaxial, LAN, STP, UTP

RS PRO LAN Cable Multifunction Tester

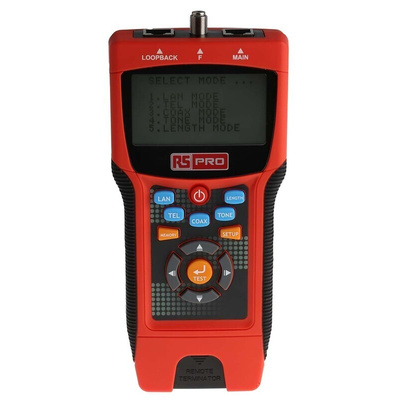

Compact, handheld and robust, RS PRO presents this multifunction cable tester. Featuring an attractive and easy to use interface, perfectly encased making it hard wearing and durable, finished off in the RS PRO red. Our testers design features a clear LCD screen, back-lit for those darker work environments.

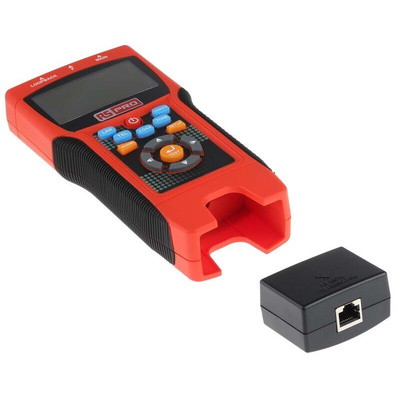

This tester can check UTP, STP, Ethernet, CAT5E, 6, 6A and Coaxial cables, determining the continuity and wiring of the cable pattern. With a pull out remote terminator, there are 8 remote IDs available and enough memory for 8 test results. A simple press of button switches between modes, which features LAN, TEL, COAX, TONE and LENGTH. Using TDR enables quick and easy measurement and testing of the length and distance of the cable.

Features and Benefits:

• 64 x 33mm LCD display

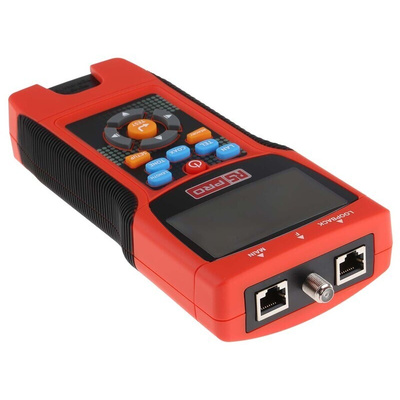

• RJ45, RJ12 & F connector
• OPEN, SHORT, CROSS or SPLIT error status
• TDR technology
• Ergonomic grip, tough case exterior

What is TDR?

Time-domain reflectometry is used to locate faults in cables, it can be used to locate discontinuities in electrical paths and connectors also. It is a very similar principle to radar, TDR electronic instruments will transmit a signal or pulse and listen for the signals reflections.

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet

User Manual
