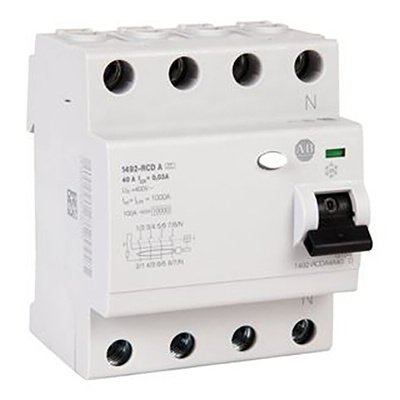

1492-RCDA4D25, Allen Bradley 1492-RCDA RCD, 25A, 3P+N Pole, 500mA, Type A, Автоматический выключатель

1492 Series

Allen Bradley general purpose RCDs from the 1492 series. The RCDs have a Type A tripping characteristic and an instantaneous break time. 2 or 4 pole versions available. All the RCDs incorporate screw terminals and can be DIN Rail mounted.

Features & Benefits

2 or 4 pole versions
DIN Rail mount
Screw Terminals

Allen Bradley RCD, 50/60Hz Rated Frequency, Dual Terminal Design - 1492-RCDA4D25

For protection against electrical hazards and shocks, opt for this RCD from Rockwell Automation's Allen Bradley range. It monitors connected circuits and cuts power when it detects a harmful residual current inrush, reducing the risk of damage to downstream appliances. As a type-A device, it trips at 2 to 3 times its 25A rated current, which means it's highly sensitive to power spikes and useful in volatile work areas. A 3P+N pole configuration makes this a practical choice for 3-phase circuits in both residential and industrial applications.

• Thermoplastic housing for durability and impact resistance
• Wide operating temperature range between -25°C and+55°C for use in demanding conditions
• Low power loss of 1.3W for energy efficiency and increased productivity
• Dual terminal design to accommodate wires and busbars for versatility

Standards and Certifications

• UL 1053
• CSA-C22.2 No. 144
• RoHS

Is this RCD finger-safe?

This device's housing is protected from objects larger than 1mm in size. Its terminals can withstand solids larger than 12.5mm in size. These features make it finger-safe by preventing accidental contact with live parts.
