EasyLog EL-SGD 70-ATP Four Channel Touch Screen Temperature Data Logger, PanelPilot ACE

The Lascar EasyLog EL-SGD 70-ATP is a four-channel temperature data logger with real-time readings, trend graphing and data analysis tools.

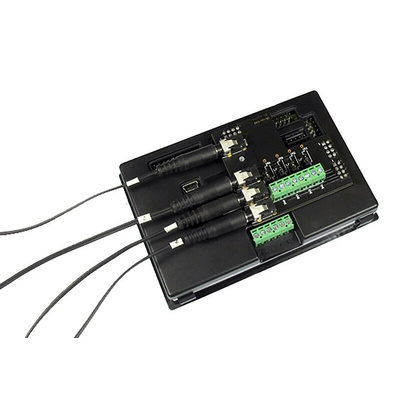

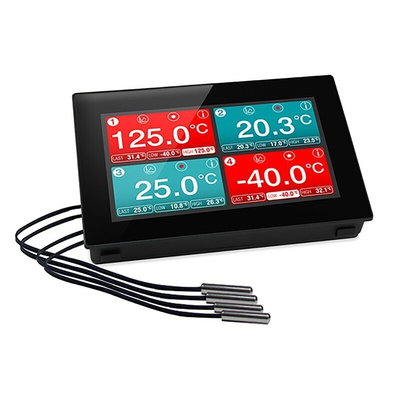

It is based on the Lascar PanelPilotACE platform and includes a 7 inch panel mounted colour display with capacitive touch screen. It incorporates a four-channel thermistor temperature board and compatible probes.
The user interface comprises an advanced logging application which shows real-time temperature readings for up to four channels, live trend graphs and access to a suite of real-time data analysis information.
The logger can store up to 100,000 readings per channel at sample rates from 15 seconds up to 12 hours. Data can be downloaded via USB using Lascars free utility device software, which is available from: www.lascarelectronics.com/software/panelpilotace
Advanced users can customise the interface using Lascars free drag-and-drop PanelPilotACE Design Studio software.

Supplied with

7 inch PanelPilotACE display with mounting kit (SGD 70-A)
Four-channel thermistor add-on board (S70-TP)
4 x 1 metre thermistor probes with 3.5 mm plug (EL-PROBE2-1.0M-TP)
Mini USB cable (CABLE USB A-MF)

Datasheet
