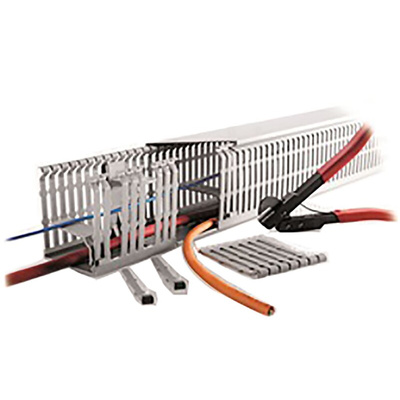

RS PRO Grey Slotted Panel Trunking - Open Slot, W60 mm x D80mm, L2m, Halogen Free PC/ABS

RS PRO Grey Slotted Panel Trunking - Open Slot, 2 m (L) x 60 mm (W) x 80 mm (D), Halogen Free PC/ABS

This grey panel trunking from RS PRO offers flame retardant protection for your cables. It's made from a mix of acrylonitrile butadiene styrene (ABS) and polycarbonate (PC), so it has a high melting point and is self-extinguishing. It's free from silicon, halogen and cadmium and releases a minimal level of toxic and corrosive gases if ignited.


This open slot trunking is easy to customise thanks to the breakpoints on the channel floor and bars. The casing has no sharp edges, so it won't harm your hands or cables during installation. The unit's rigid construction makes it strong enough to use on vertical or horizontal cabling systems.


This cable trunking complies with the EN45545 HL2 standard for railway fire safety, so it's suitable for use in trains and stations. It's also useful in other public spaces like sports centres and shopping centres, as well as in high-risk industrial sites such as oil rigs.

Features and Benefits

• Dimensions of 2000 (length) x 60 (width) x 80 mm (depth)


• Terminal F 2000 series


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with ANSI/ESD S20.20:2014 (protection of parts against electrostatic discharge)


• Complies with BS EN 61340-5-1:2007 (protection of electronic devices from electrostatic phenomena)


• Complies with CE, cULus, DIN, EN50085, GL and VDE 0472 standards

Note

For easier installation please order the RS PRO wire holder 136-9920 (pack of 400) or 136-9942 (pack of 50)

Datasheet
