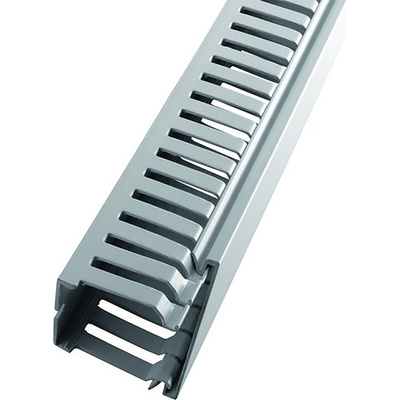

RS PRO Grey Slotted Panel Trunking - Open Slot, W25 mm x D50mm, L2m, Halogen Free PC/ABS

RS PRO Grey Slotted Panel Trunking - Open Slot, 2 m (L) x 25 mm (W) x 50 mm (D), Halogen Free PC/ABS

When you need a cable conduit that's fire safe and quick to install, use this RS PRO grey panel trunking. For easy installation, it comes with self-adhesive retaining tape, breakpoints on the bars and slots ready for feeding your cables in and out.
It's made from a rigid thermoplastic that's self-extinguishing and flame-retardant to protect you in the event of a fire. This material is also free from halogen, cadmium and silicon to minimise the amount of toxic fumes released if ignited. Its safe operating temperature of -25°C to +90°C means it's suitable for protecting cables in difficult industrial environments such as oil and gas rigs.
This type of trunking is useful for organising and protecting wires. You'll also find it on electrical control panels like safety alarm systems.

Features and Benefits

• Dimensions of 2000 (length) 25 (width) x 50 mm (depth)
• PC (polycarbonate) and ABS (Acrylonitrile Butadiene Styrene) material
• DIN (the German Institute of Standardisation) terminal
• Meets EN (European standard) 50085 and 45545 HL2 for cable systems and railway fire safety
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Complies to ANSI/ESD S20.20:2014 (protection of parts against electrostatic discharge)
• Complies to BS EN 61340-5-1:2007 (protection of electronic devices from electrostatic phenomena)

Note

For easier installation please order the RS PRO wire holder 136-9920 (pack of 400) or 136-9942 (pack of 50)

Datasheet
