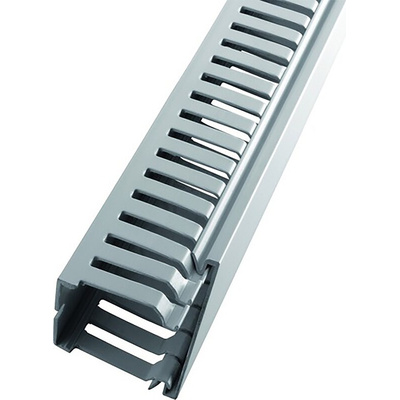

RS PRO Grey Slotted Panel Trunking - Open Slot, W50 mm x D75mm, L2m, Halogen Free PC/ABS

RS PRO Grey Slotted Panel Trunking - Open Slot, 2 m (L) x 50 mm (W) x 75 mm (D), Halogen Free PC/ABS

Do you need fire safe protection for your cables? Choose this RS PRO grey panel trunking. It's easy to install as it comes with breakpoints on the bars, self-adhesive retaining tape and slots ready for feeding your cables in and out.


Its rigid thermoplastic material is flame-retardant and self-extinguishing to keep you safe if a fire starts. It's also free from silicon, halogen and cadmium, minimising the release of toxic fumes. You can use the panel trunking at temperatures ranging from -25°C to +90°C, so it's a good choice for protecting cables in challenging industrial settings like gas and oil rigs.


This kind of trunking is useful for protecting and organising wires. It's also found on electrical control panels such as safety alarm systems.

Features and Benefits

• Dimensions of 2000 (length) x 50 (width) x 75 mm (depth)


• Terminal DIN series


• PC (polycarbonate) and ABS (acrylonitrile butadiene styrene) material


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Complies with CE, cULus, DIN, EN50085, EN45545 HL2, GL and VDE 0472 standards


• Complies with ANSI/ESD S20.20:2014 (protection of parts against electrostatic discharge)


• Complies with BS EN 61340-5-1:2007 (protection of electronic devices from electrostatic phenomena)

Note

For easier installation please order the RS PRO wire holder 136-9920 (pack of 400) or 136-9942 (pack of 50)
