Recom Switching Power Supply, RACM100-12S/OF, 12V dc, 8.34A, 100W, 1 Output, 264 V ac, 370 V dc Input Voltage, Источник питания

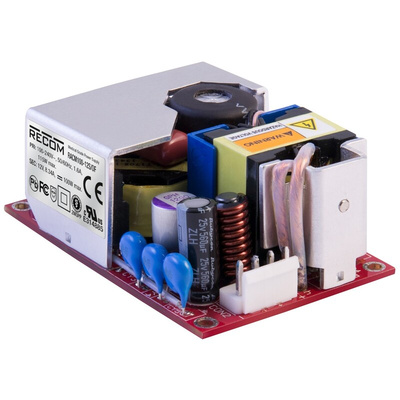

100W Switch Mode Medical Open Frame Power Supply- RACM100 Series

The Recom RACM100 Series is a range of medical power supplies with 2 x MOPP safety approvals. These open frame AC-DC converters are great where space is an issue, with their compact 3 x 2 in package. The RACM100 open frame power supplies feature a universal input voltage range from 85 V ac to 264 V ac, 4kVac isolation and require no minimum load. The AC-DC converters come with a fully protected range of output voltages. The RACM100 series of open frame power supplies feature BF rated outputs with less than 75μ.A leakage current and a built-in class B EMI filter. These single output AC-DC converters are certified to medical safety standards IEC/ES/EN-60601-1 3rd edition.

Features and Benefits

• 2MOPP/250Vac
• Suitable for built-in Class II Applications
• Wide Input Voltage Range (85-264 V ac)
• Low Leakage Current (˂75μA)
• 5000 m operation
• Active Power Factor Correction

Standards

EN-55011, EN-55022, ES-60601, IEC/EN-60601

Approvals

CE, FC, cULus, UL, 2MOPP

Switch Mode - Recom, RACM Series

RACM100 Series power supply data sheet
