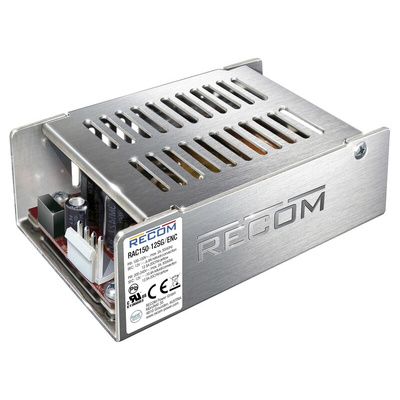

Recom Switching Power Supply, RAC150-48SG/ENC, 48V dc, 3.125A, 150W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

Recom 150W Enclosed Case Switch Mode AC-DC Power Supply- RAC150 Series

The Recom RAC150/ENC series of AC-DC power supplies have a universal input range of 90 V ac to 264 V ac and regulated 12v, 24v and 48v DC outputs with 3kVAC isolation. With a compact 4” x 2” footprint, the RAC150/ENC power supplies are ideally suited for high-power density applications with limited airflow. These enclosed case AC-DC power supplies are UL and CE marked with CB reports which include 62368 and 60950 safety standards. All power supplies can withstand an operating temperature range of -30°C to 70°C (with derating) providing up to 91% efficiency.

Features and Benefits

• Universal input 90 V ac to 264 V ac
• Short circuit and over voltage protected
• Power OK LED
• Active PFC function, PF˃0.95
• UL, CE marked (CB report)
• Efficiency 91%

Applications

• Industry control
• Test and measurement

Standards

IEC/EN/UL 60950-1
IEC/EN/UL62368-1
EN55022/24 Class B

RAC150 Series power supply data sheet
