09080007223, HARTING Han-Fast Lock Male ≤60A Crimp Contact Minimum Wire Size 4mm² Maximum Wire Size 6mm² for use with Heavy Duty Power

Harting Han-Fast Lock PCB Contacts

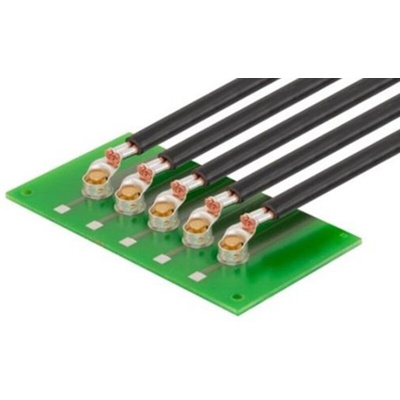

Harting Han-Fast Lock PCB contacts designed for making fast and simple solder free wire terminations directly to the PCB. The contacts are inserted into drilled through- plated holes on the PCB which serve as the interface. A locking pin is then pushed in which locks the contact into position. This push in method eliminates the need for soldering and allows easy handling and fast assembly. These Han-Fast Lock PCB contacts are silver plated with a high-quality design and are available with a straight or right angle orientation.
Stock numbers 136-9187 and 136-9223 accept a wire size range of 1.5 to 2.5mm²
Stock numbers 136-9188 and 136-9224 are right angled and accept a wire size range of 1.5 to 2.5mm²
Stock numbers 136-9189 and 136-9225 are right angled and accept a wire size range of 4 to 6mm²
Stock numbers 136-9190 and 136-9226 are right angled and accept a wire size range 10mm²

Features and Benefits

• Solder free PCB termination
• Easy and quick to assemble
• Locking mechanism for secure PCB connection
• Allow design flexibility
• Up to 60 A current rating

Harting Han® Modular

The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
