gen4-MOTG-AC2, 4D Systems MOTG AC2 Interface Board with 2 MOTG Slots for gen4 LCD Displays, Интерфейсная плата

MOTG AC2 gen4 Interface Board

The 4D Systems MOTG (Modules on the Go) product family provides an innovative plug and play solution for adding key functionalities to 4D Systems gen4 LCD Display Modules.

Utilising a modular concept, the MOTG range provides a simple method for swift hardware expansion, allowing rapid design and maintenance of applications requiring a display. WiFi, Bluetooth, RS-232, RS-485 and enhanced audio can easily be added to an LCD display through simply plugging in the appropriate module into an installed MOTG interface board.

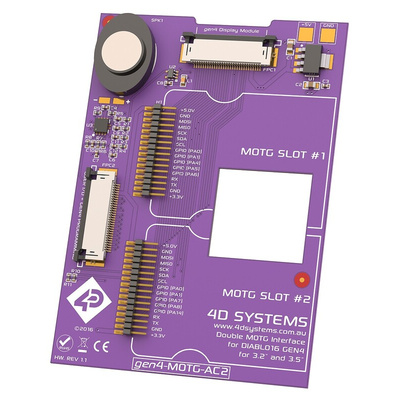

This MOTG AC2 Interface Board provides the link between a Diablo16 based gen4 LCD Display and up to 2 MOTG Add-On Modules. The MOTG Interface Board sits flush on the back of a 3.2” or 3.5” Diablo16 gen4 LCD Display, providing 2 module slots in the Universal MOTG BUS (UMI) format. The board connects to the display via a 30-way FFC Connector.

In addition, the MOTG AC2 Interface Board features an extra 30-pin ZIF socket for easy connection to other application boards and an audio speaker. A cut-out in the PCB is present to provide access to the microSD card of the gen4 LCD Display Module.

Features

Allows quick and easy hardware expansion
Provides 2 MOTG Module slots
Compact – Fitment maintains slim module profile
An extra 30-pin ZIF socket for user I/O
Audio speaker
PCB cut-out for easy access to the LCD microSD

Kit Contents

1 x MOTG AC2 gen4 Interface Board
1 x 30-way 150mm FFC Cable

Note

The MOTG AC2 gen4 Interface Board is compatible with gen4 Diablo16 based LCD Modules only.
