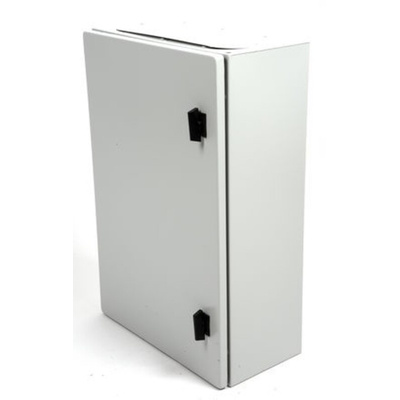

NSYCRN54200P, Schneider Electric Spacial CRN Series Steel Wall Box, IP66, 500 mm x 400 mm x 200mm, Настенный шкаф

Schneider Electric IP66/IK10 Spacial CRN - CRNG Multi-Purpose Steel Wall Box Enclosure with Cable Gland Plate.

The Schneider Electric Spacial CRN and CRNG steel wall mounting enclosure is a truly universal wall box enclosure has an epoxy-polyester powder finish light grey body. The enclosure also has a polyurethane seal to guarantee water tightness for years. Schneider Electric range offers you CRN models and CRNG models for larger sizes of wall box enclosures.

CRN and CRNG Universal Wall Box Enclosures Features.

• Doors are removable, have a 120° opening, reversible with 2 closing points from 600 mm in height.


• Maximum load of 50 kg/m2.


• Polyurethane seal.


• Smart hinges allow easier removal allowing door reversal.


• Various inserts available.


• Welded studs on the door and wall box enclosure body (earth welded).


• Welded back studs (4), shouldered for mounting 10 mm.


• Epoxy polyester coating, polyurethane seal to guarantee water tightness for years.


• Polyester painted RAL 7035.

• 3 Point lock.


• Double door models available (IP 55).

Spacial CRN / CRNG Wall Box Enclosure Chassis Optionally Available.

• Plain, Silk-screen, micro-perforated, Telequick perforated, Symmetrical, Steel cable gland plate, Insulated cable gland plate (with knockouts), Cable gland plate will receive membranes.

Spacial CRN / CRNG Steel Wall Box Enclosure Typical Applications.

• Industrial automation, Industrial control (plain chassis, micro-perforated chassis, perforated chassis).


• Electrical distribution (modular chassis, steel and insulated – 24 to 234 modules).


• Electronics and Industrial networks (18 inch fixed or swing frame).

NSYCRN54200P Spacial CRN Compact Multi-Purpose Wall Box Enclosure with Mount Plate.

Features.

• Compact enclosure.


• Wall mounting.


• Plain front door, reversible 120°.


• Mounting plate is supplied.


• Sides made from a single folded section, Back welded with double profile forming a protected sealed area.


• 3 mm double-bar lock.


• Standard gland plate.


• Hinges, mounting plate and cable gland plate removable.


• Body made from steel, mounting plate is galvanised steel.


• Epoxy-polyester powder finish, Grey RAL 7035.


• IP66 conforming to IEC 60529 (indoor and outdoor use).


• IK10 conforming to IEC 62262.

What is supplied?

• Lock 1, Door 1, Body 1, Cable gland plate 1, Mounting plate 1.

Approvals

CU, UL.

Standards

IEC 62208
