4D Systems gen4-4DCAPE-70T TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels, Дисплей

gen4 4DCAPE LCD Display Modules with Resistive Touch for BeagleBone Black

The 4D Systems gen4 4DCAPE LCD Display Modules with touch are designed specifically for the BeagleBone Black development platform. They provide a simple means of adding a primary display with touch functionality to BeagleBone Black based applications.

The included 4DCAPE adaptor makes connecting the display to the BeagleBone Black easy. The 4DCAPE adaptor fits directly onto the expansion headers of the BeagleBone Black and connects to the display via a 30-way FFC connector. No other connections are needed, the BeagleBone Black provides all the necessary power and display signals via the 4DCAPE adaptor.

This variant of the 4DCAPE LCD Display Module range features resistive touch and incorporates the Microchip AR1021 controller to interpret user inputs. The touch controller communicates with the BeagleBoard Black over I²C.

Features

Simple to implement LCD Display with touch for BeagleBone Black
480 x 272 (4.3”) or 800 x 480 (5.0” and 7.0”) resolution
Resistive touch
EEPROM CAPE ID selection via DIP switch
4 x 4.0 mm mounting holes
CE and RoHS compliant

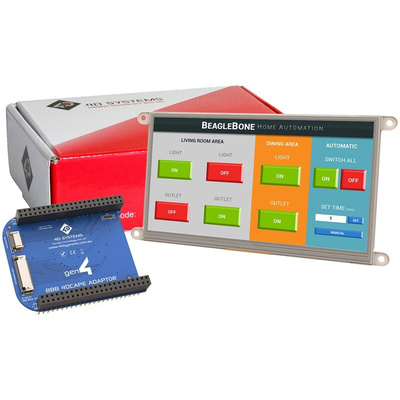

Kit Contents

1 x gen4 4DCAPE LCD Module
1 x gen4 4DCAPE adaptor
1 x 30-way FFC Cable

Note

The gen4 4DCAPE LCD Display Modules are compatible with the BeagleBone Black only
