4D Systems gen4-4DCAPE-70CT-CLB TFT LCD Colour Display / Touch Screen, 7in, 800 x 480pixels, Дисплей

4D Systems LCD Display

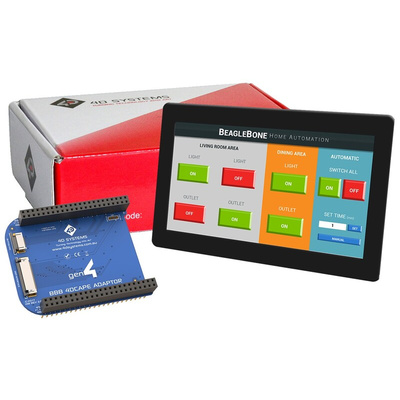

The 4D Systems gen4 series 7in LCD with touch is designed specifically for the BeagleBone Black development platform. It provides a simple means of adding a primary display with touch functionality to BeagleBone Black-based applications. The included 4DCAPE adaptor makes connecting the display to the BeagleBone Black easy. The 4DCAPE adaptor fits directly onto the expansion headers of the BeagleBone Black and connects to the display via a 30-way FFC connector. No other connections are needed, the BeagleBone Black provides all the necessary power and display signals via the 4DCAPE adaptor. This variant of the 4DCAPE LCD module range features capacitive touch and incorporates a FocalTech controller to interpret user inputs. The touch controller communicates with the BeagleBoard Black over I2C. Also featured on this variant is a pre-installed cover lens bezel, which allows the display to be mounted without additional mounting hardware. The display can be secured by the bezel using the included adhesive.
Kit contents
1 x gen4 4DCAPE LCD module
1 x gen4 4DCAPE adaptor
1 x 30-way FFC cable
Note:
The gen4 4DCAPE LCD modules are compatible with the BeagleBone Black only.

Features and Benefits

Capacitive touch TFT transmissive display
800 x 480 resolution
Cover lens bezel glass fronts for the display module
EEPROM CAPE ID selection via DIP switch
Simple to implement LCD Display with touch for BeagleBone Black
Electrical rating is 5VDC and 1.1A
Width of 121.9mm, depth of 10mm and height of 10mm

Certifications

CE certified

Datasheet

Datasheet - gen4-4DCAPE
