A01ES-DF2+A0154B-D+A01YL1, APEM A01ES-D Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP40, IP65

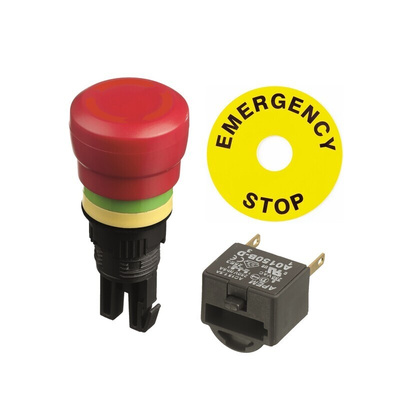

APEM Emergency Stop Button

The APEM A01ES-D series emergency stop button has a red smooth style head with a diameter of 27.42mm. It has a double pole single throw (DPST) contact configuration. With 4 actuator styles featuring a compact and modern design, this emergency stop is safe and easy to operate (Push to shut-off, twist to release) and feature green locked/unlocked status indicators for a quick and easy visual status control.
The housing is made of polyetherimide and the button is made of polycarbonate material. The button has an electrical current rating of 1.5A and 250VAC.

Features and Benefits

2NC normal contact configuration
Turn to the Release reset method
Non-illuminated
Operating temperature ranges between -20°C and 55°C
Electrical and mechanical life is 6050 cycles
Panel cut-out diameter of 16mm

Applications

OEMs
Panel builders, contractors,
Industrial machines and equipment
Control panels and control stations
Emergency circuits, alarm and signal equipment
Traction equipments

Certifications

IP65 rated

Datasheet

A01ESD Datasheet

Product Change Notification
